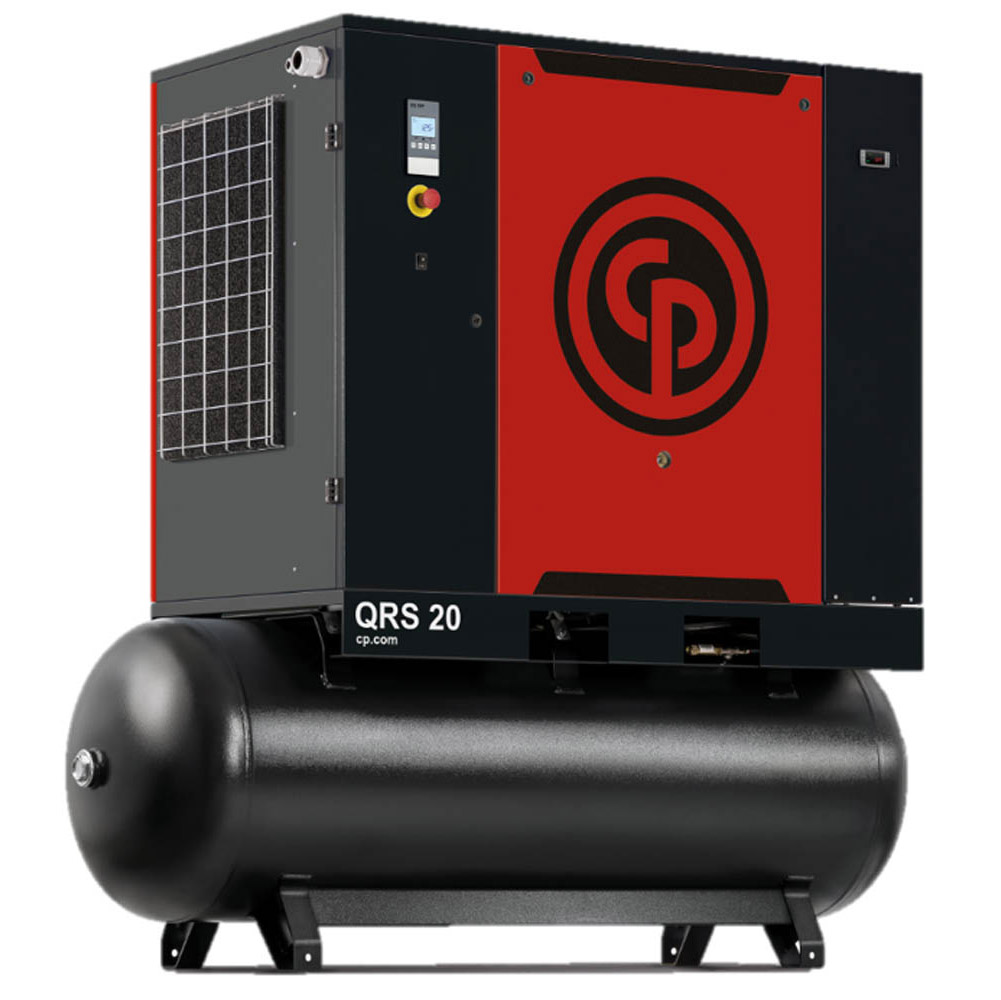

QRS 20D 125 TM

Description

The 125PSI rotary screw air compressor from Chicago Pneumatic is easy to use and works with continuous maximum efficiency. The compressor will perform optimally in the most high-demand work environments. You can always rely on it to deliver free air throughout the day without disruption.

Space Savings

The QRS models can be mounted in a wide range of styles. Get easy access to your compression system in a single location.

Low Maintenance

The QRS is manufactured with non-wearable parts. Reduce maintenance services and experience dependability, durability, and top performance for years.

Quiet Operations

The sound levels of a QRS model can reach as low as 61 dB(A). Its exceptionally quiet canopy produces a sound between 61 and 68 dB(A).

Money Savings

Get all the benefits of advanced compression without a compression room. Since the QRS can be installed and operated virtually anywhere, you can spend less on piping. Eliminate significant pressure drops from your business.

Cutting-Edge Screw Air

The QRS generates a significant amount of air efficiently, more than previous models.

IE3 Motor

The IE3 motors operate efficiently throughout the workday, minimizing energy spending and waste.

Refrigeration

Some QRS models can be equipped with a refrigerator to produce dry air.

The QRS’s Standard Features

• Low Sound Enclosures
• Tri-voltage TEFC drive motors
• All Major Components are Vibration Isolated
• ES4000 Basic Controller (10-20M only)
• 125 & 150 psig standard (10-20M only, 100 & 175 available with kit)
• Simplified Maintenance from a Single Panel
• Start/Stop Controls on 3 phase 3-7.5 HP units
• Spin-on Oil & Separator Filters
• Load/No Load Operation with Timed Shutdown on 10-20M and Single Phase Compressors
• Lift Gate Charge $125 net (minimum)

Advanced Operation With the ES4000 Basic Controller

The QRS 10-20M is powered by the ES4000 basic controller, an advanced electronic unit designed for efficient energy management and intelligent shutdown. With its intuitive interface, the ES4000 controller ensures user-friendly operation while providing timely warnings and service alerts. Experience simplified control and enhanced safety with the QRS 10-20M and its cutting-edge ES4000 controller.

Features

• Icon-based display with pressure and temperature settings/readings
• Running and working hours
• Service warnings
• Element outlet temperature reading
• Automatic restart after voltage failure

Tech Specs

• Horsepower: 20hp
• PSI: 125 (Pressure)
• Outlet CFM Max: 82 (Flow)
• Max PSI: 125
• Volts: 208, 230, 460
• Phase: 3
• Fuel: Electric
• Available Options: Base Mounted, Does Not Include Tank, Dryer Included

Dimensions & Weight

• Tank Size: 120 Gallons
• Tank Orientation: Horizontal
• (A) Length: 75″
• (B) Width: 31″
• (C) Height: 72″
• Weight: 1296 lbs
