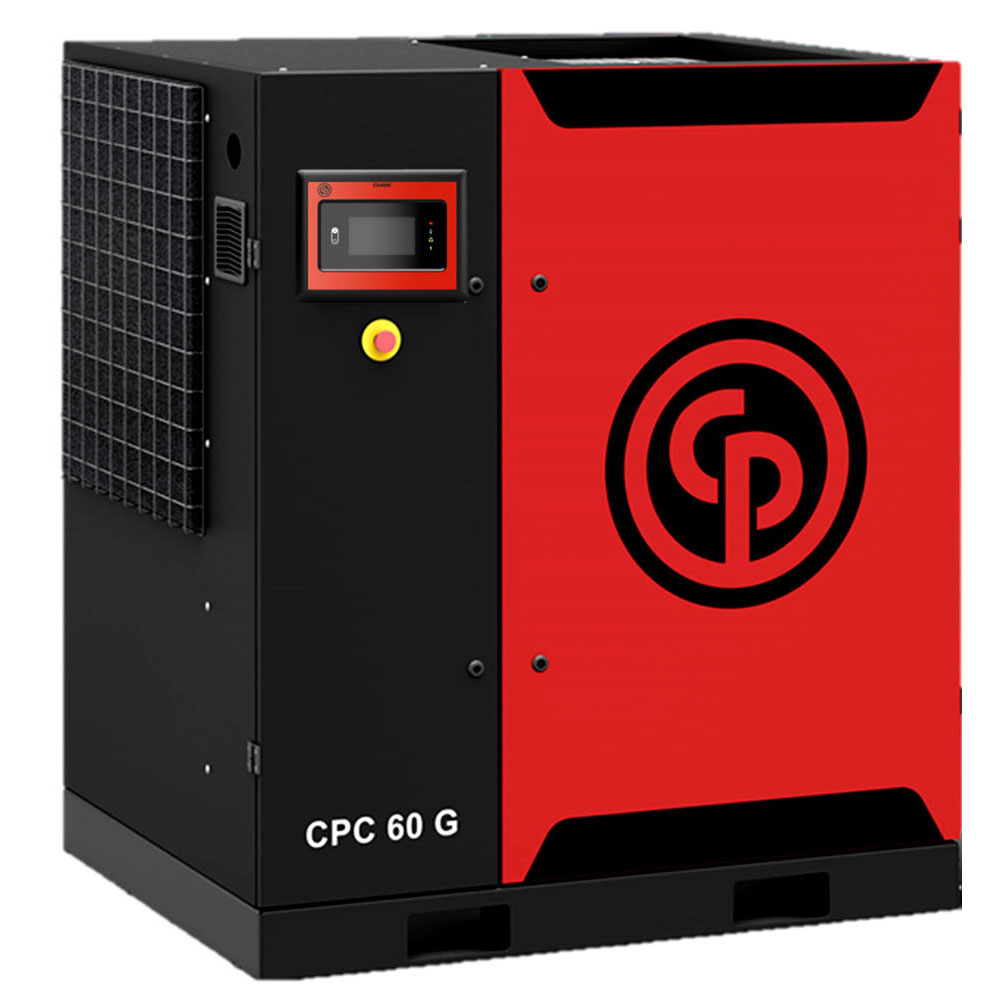

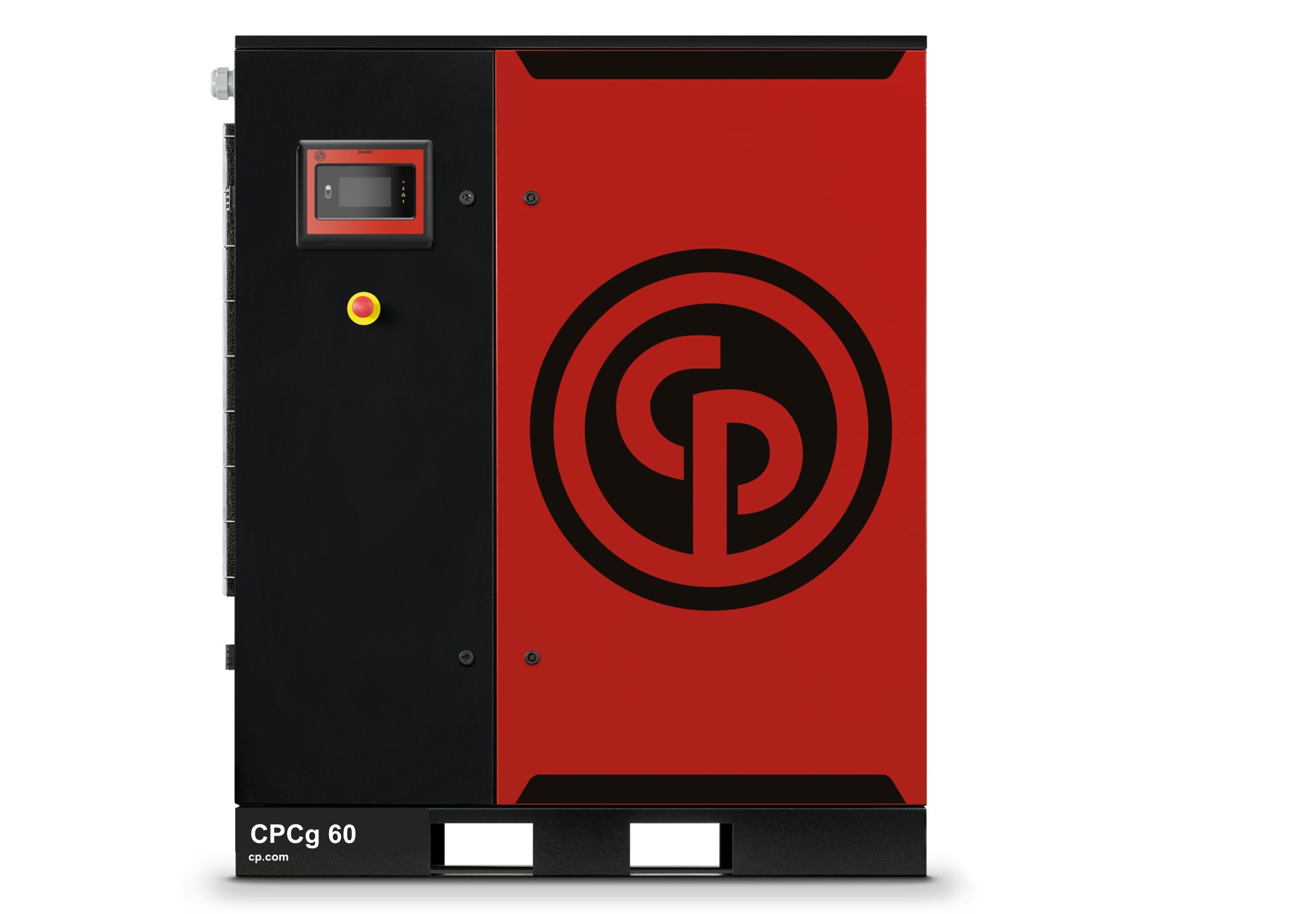

CPCg 60

60HP 125PSI Industrial Gear Driven Rotary Screw Air Compressor By Chicago Pneumatic (460v)
Chicago Pneumatic logo


Small but high-performance, the CPCg 60 rotary screw compressor is engineered with top quality. It can function within designated compression rooms or any floor space while performing with maximum efficiency. It is known for its exceptional reliability and simple use. The CPCg 60 is ideal for saving precious operational space and keeping noise levels at a comfortable minimum.

Unmatched Design

  • Compact size and build to save space and minimize noise emissions
  • Will operate dependably in temperatures as high as 46 degrees Celsius
  • Manufactured with durable components, highly resistant to wear and tear for minimal maintenance
  • Features an IP66-enclosed drive train that operates reliably in intense dust and humidity
  • IPM direct drive for continuous, reliable performance

Cost-Effective Performance

  • Prevent losses with the CPCg’s integrative direct drive transmission
  • Reduce your footprint and save up to 30% more space
  • Take control of your compression with the cutting-edge Airlogic2T controller
  • Maximize performance in the harshest environments with a gear drive
  • Expect optimal operation in long-duty cycle compressor rooms

Near-Silent Operation

The CPCg can be installed virtually anywhere in your workspace or operation. Place it in a compressor room or directly on your work floor, whichever works best for you and your teams. Its sound emission can reach as low as 66 db(A), enabling teams to better focus on their work.

Advanced ICONS Controls

The CPCg is built with an Intelligent CONnectivity System (ICONS). This system provides invaluable data regarding your compression performance through any smart or mobile device.

  • Detect concerns or issues with your operation so you can address them quickly to save valuable production time and output
  • Evaluate your energy consumption, loss, or waste and find ways to reduce your CO2 emissions.
  • Gain access to detailed energy reports to ensure your operation is ISO50001 compliant

Tech Specs

  • Horsepower: 60hp
  • PSI: 125 (Pressure)
  • Outlet CFM Max: 262 (Flow)
  • Max PSI: 125
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer

Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 52″
  • (B) Width: 32.7″
  • (C) Height: 61.2″
  • Weight: 1424 lbs
