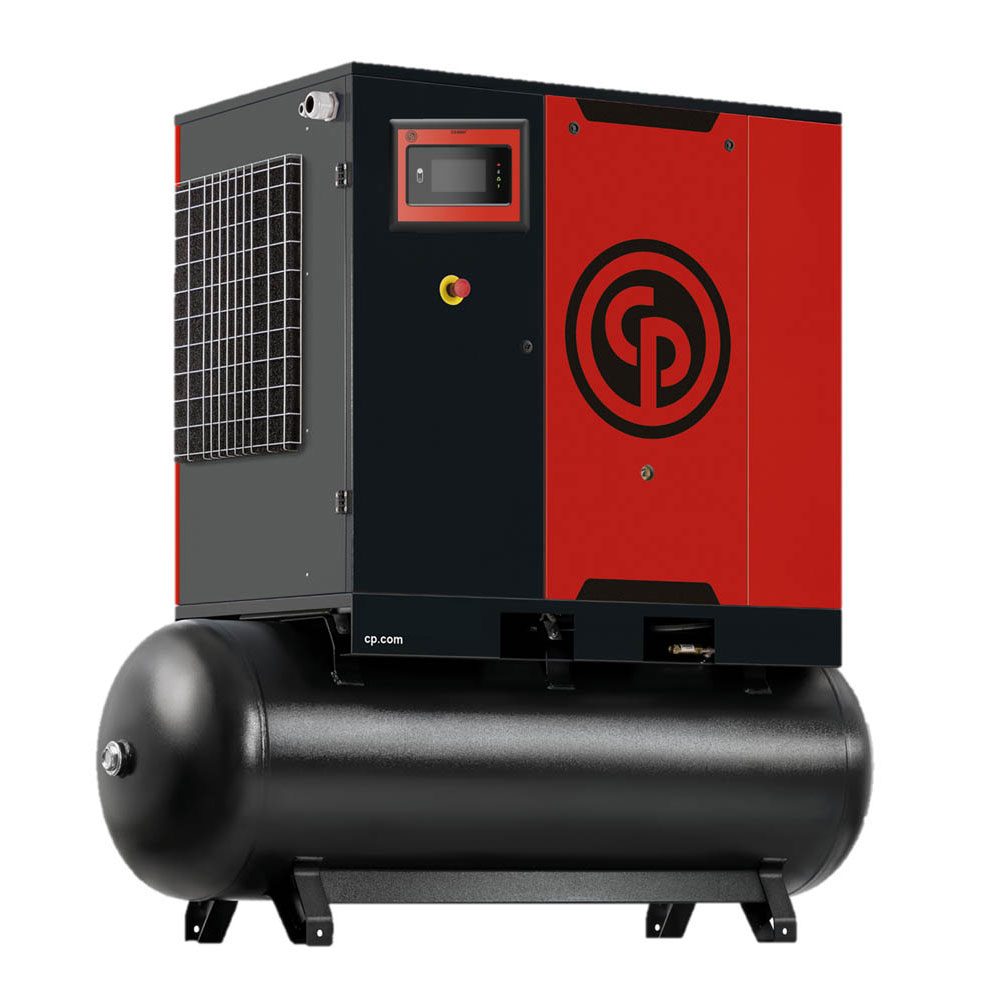

CPBg 35

35HP 100PSI Base Mounted Gear Driven Rotary Screw Air Compressor By Chicago Pneumatic (230/460v)
Chicago Pneumatic logo


This compact compressor can fit virtually any workspace or operation while providing maximum performance and durability. It is used in the toughest working conditions and is preferred for user-friendliness. Its array of customized options is nearly endless. The CPBg 35 emits low noise levels and is built to last for years, operating seamlessly throughout its lifespan.

Quiet Noise Emission

The CPBg series’ gearbox and insulation allow it to operate optimally while making little noise.

Minimal Upkeep

No more frequent maintenance visits, repairs, or replacement work. The CPBg’s innovative oil separating reduces upkeep significantly.

Intelligent Monitoring

The advanced ES4000 monitoring and control capability is designed to help businesses and operations minimize energy costs. It gives the user complete control over energy usage and provides an intelligent operation shutdown, which reduces energy waste.

Energy Conservation

The CPBg saves more energy while enhancing compressed air generation processes.

Air Quality Packages

Some CPBg models can be equipped with a dryer, water separator drain, and post filter for maximum use.

Standard Features

  • Low sound enclosure and pre-filtration panel with foam
  • 100, 125, 150, and 175 psig available
  • Rapid, single-panel maintenance
  • Wye-delta, reduced voltage start
  • ES4000 microprocessor control
  • Tri-voltage 208-230-460 motor
  • Independent oil and air aftercoolers
  • Temperature protection on drive side motor bearings
  • Improved long life inlet valve
  • Shipped with Rotair 2000 hour oil
  • Tank and base mount options
  • 10 L / 2.64 gal oil capacity
  • ASME and cUL approved

Other Features

  • Automatic Restart After Voltage Failure
  • I/O Expandable
  • Service Warnings
  • Remote Pressure Sensor Possible
  • Remote Monitoring

Tech Specs

  • Horsepower: 35hp
  • PSI: 100 (Pressure)
  • Outlet CFM Max: 171 (Flow)
  • Max PSI: 100
  • Volts: 230, 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Base Mounted

Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 52″
  • (B) Width: 33″
  • (C) Height: 61″
  • Weight: 1058 lbs
