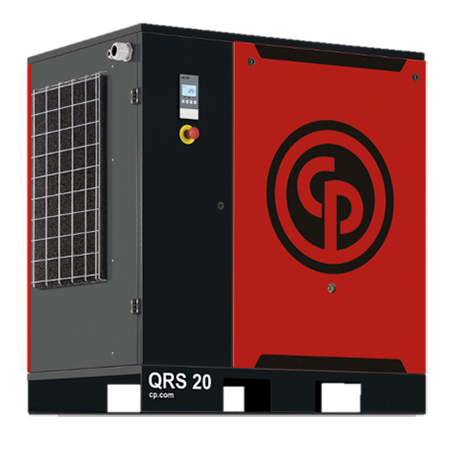

QRS 20 125 BM

20HP 125PSI Base Mounted Rotary Screw Air Compressor By Chicago Pneumatic (TRIVOLT)
Chicago Pneumatic logo


Business operations choose the QRS 20 125 BM because it is exceptionally user-friendly and dependable. It serves a wide range of working environments and industries with outstanding compression, including tire shops and car dealerships. It is built to produce low-noise levels, making it suitable and conducive for any industry or work environment.

Space Savings

The QRS models can be mounted in a wide range of styles. Get easy access to your compression system in a single location.

Low Maintenance

The QRS is manufactured with non-wearable parts. Reduce maintenance services and experience dependability, durability, and top performance for years.

Quiet Operations

The sound levels of a QRS model can reach as low as 61 dB(A). Its exceptionally quiet canopy produces a sound between 61 and 68 dB(A).

Money Savings

Get all the benefits of advanced compression without a compression room. Since the QRS can be installed and operated virtually anywhere, you can spend less on piping. Eliminate significant pressure drops from your business.

Cutting-Edge Screw Air

The QRS generates a significant amount of air efficiently, more than previous models.

IE3 Motor

The IE3 motors operate efficiently throughout the workday, minimizing energy spending and waste.


Some QRS models can be equipped with a refrigerator to produce dry air.

The QRS’s Standard Features

  • Standard Features
  • Low Sound Enclosures
  • Tri-voltage TEFC drive motors
  • All Major Components are Vibration Isolated
  • ES4000 Basic Controller (10-20M only)
  • 125 & 150 psig standard (10-20M only, 100 & 175 available with kit)
  • Simplified Maintenance from a Single Panel
  • Start/Stop Controls on 3 phase 3-7.5 HP units
  • Spin-on Oil & Separator Filters
  • Load/No Load Operation with Timed Shutdown on 10-20M and Single Phase Compressors
  • Lift Gate Charge $125 net (minimum)

Maximize Compression With the ES4000 Basic Controller

The ES4000 basic controller enables users to efficiently reduce their energy use and power down their operations. It’s the best choice for convenient operation. Here’s what it provides:

  • Icon-based display with pressure and temperature settings/readings
  • Running and working hours
  • Service warnings
  • Element outlet temperature reading
  • Automatic restart after voltage failure

Tech Specs

  • Horsepower: 20hp
  • PSI: 125 (Pressure)
  • Outlet CFM Max: 82 (Flow)
  • Max PSI: 125
  • Volts: 208, 230, 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Base Mounted, Does Not Include Tank

Dimensions & Weight

  • Tank Size: 120 Gallons
  • (A) Length: 45″
  • (B) Width: 31″
  • (C) Height: 49″
  • Weight: 690 lbs
