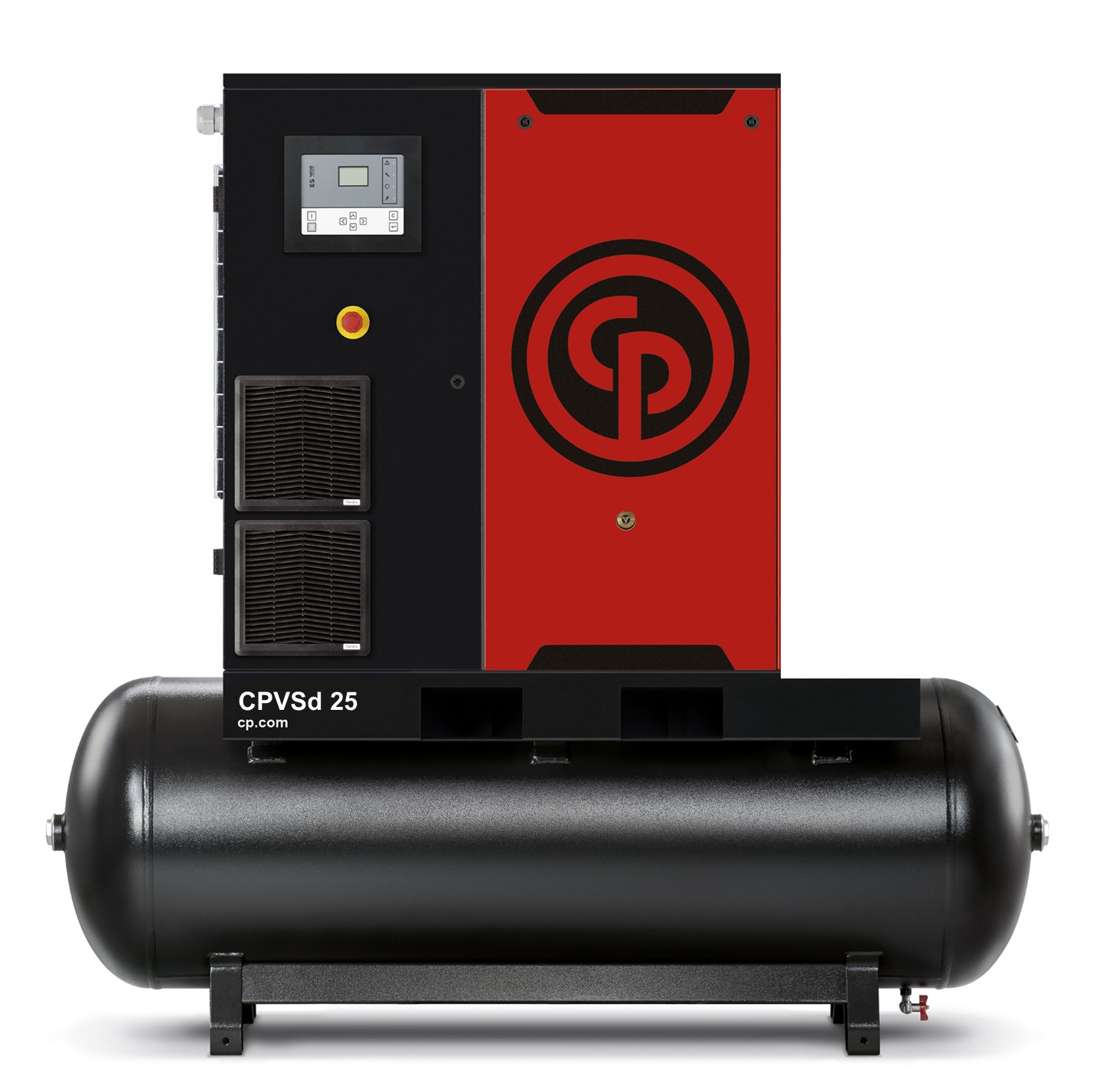

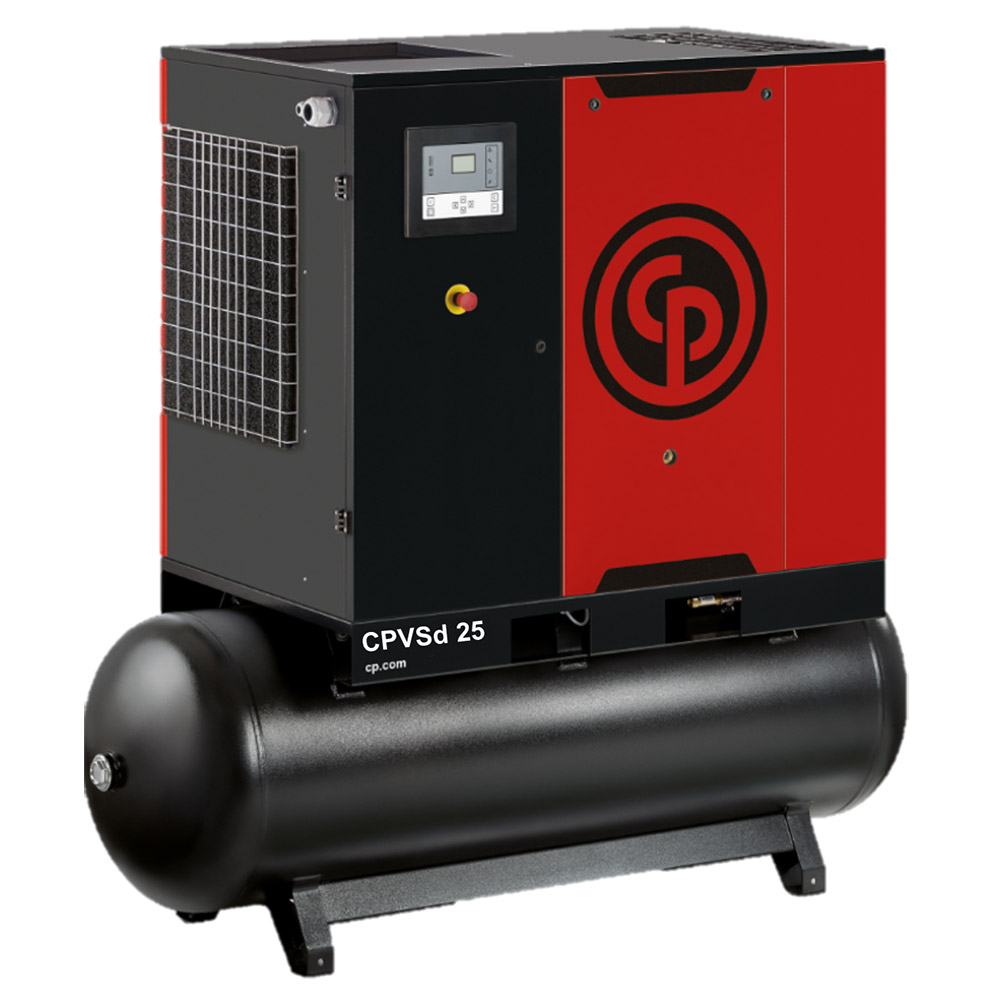

CPVSd 25 TM

25HP 182PSI Tank Mounted Variable Speed Rotary Screw Air Compressor By Chicago Pneumatic (460v)
Chicago Pneumatic logo

Description

This speed rotary screw air compressor helps operations save big on costs. It comprises cutting-edge ES4000 controlling that keeps the pressure at wanted levels and doesn’t exceed the amount of air you need. Use your CPVSd 25 TM on its own or combine and integrate it with a base-load compressor, where it will function as a trim machine for maximum capabilities.

Standard Features

  • Low sound enclosure
  • Direct drive transmission
  • 73-182 psig pressure range
  • 20-100% turndown capacity
  • ES4000 Advanced graphic controller
  • 460V standard
  • 230V available for tank-mounted models
  • IP55 TEFC High-Frequency Motors designed for variable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed Drive
  • ECOntrol 6i capable
  • ICONS capable

Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.

Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.

Features

  • Graphic Display
  • Automatic Restart After Voltage Failure
  • I/O Expandable
  • Graphic Service Plan Indicator
  • Remote Pressure Sensor Possible
  • Real-Time Trending
  • Remote Visualization
  • Master Control Capability
  • Programmable daily and weekly schedule

Tech Specs

  • Horsepower: 25hp
  • PSI: 182 (Pressure)
  • Outlet CFM Max: 125 (Flow)
  • Max PSI: 182
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Tank Mounted

Dimensions & Weight

  • Tank Size: 132 Gallons
  • Tank Orientation: Horizontal
  • (A) Length: 76.4″
  • (B) Width: 32.9″
  • (C) Height: 72.2″
  • Weight: 1169 lbs
