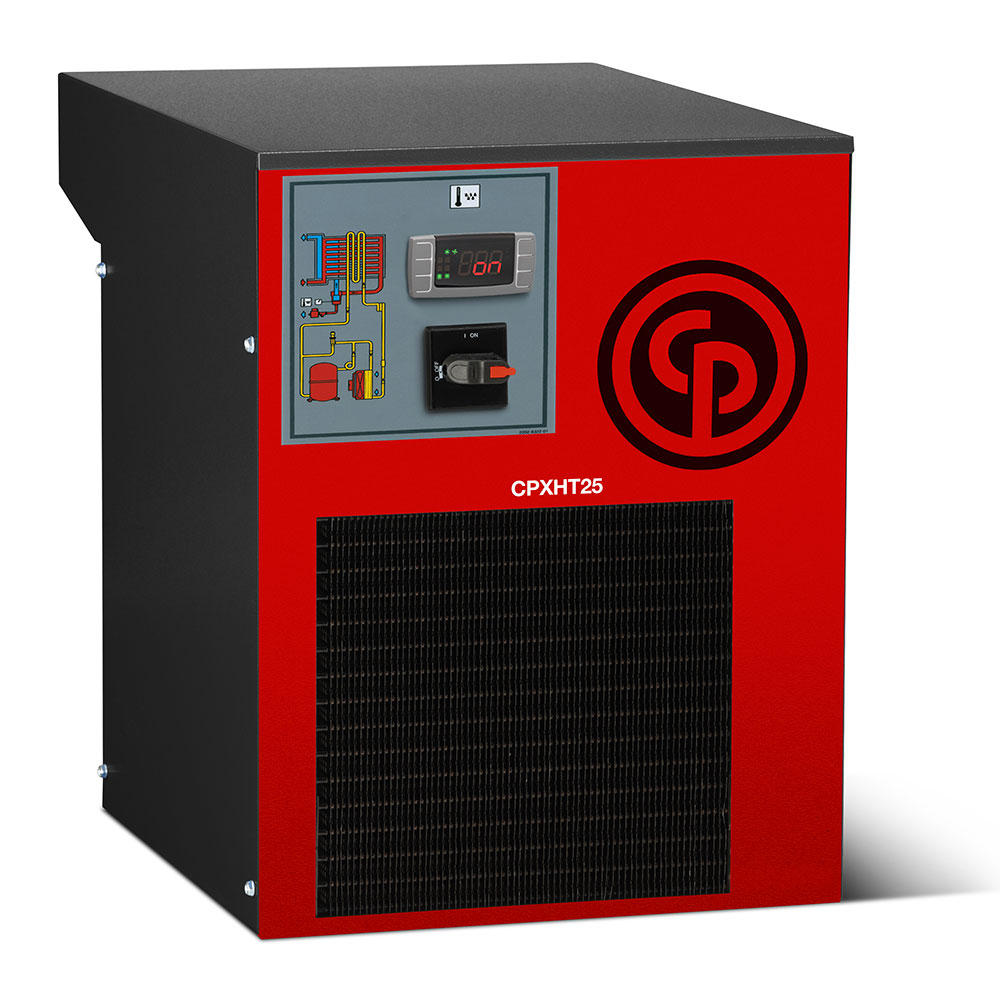

25CFM High Temperature Refrigerated Air Dryer By Chicago Pneumatic
Chicago Pneumatic logo


The CPXHT25 25CFM high temperature refrigerated air dryer is built to serve many applications. They are known for their exceptional dependability and make little to no noise while in use. This dryer treats air compression through distinct refrigerant characteristics, lowering its temperature. The reduced air temperatures lead to water vaporization and discharge. The convenient, easily manageable dryer runs on a mere 115 volts and can fit virtually anywhere.

Standard Features

  • Stainless steel copper heat exchanger
  • Water, oil, and dirt removal from air systems
  • Tool and cylinder damage prevention
  • Paint splash resistance
  • Minimal operation downtime
  • Boosted production and profits
  • Small, powerful, easily installed design
  • Cooling efficiency
  • Noise-reducing enclosure
  • Zero-loss condensation drain

Tech Specs

  • PSI: 232 (Pressure)
  • Inlet CFM Max: 25 (Inlet Flow)
  • Max PSI: 232
  • Volts: 115
  • Available Options: Stainless Steel/ Copper Heat Exchanger

Dimensions & Weight

  • NPT IN: .75″
  • NPT OUT: .75″
  • (A) Length: 14″
  • (B) Width: 15″
  • (C) Height: 19″
  • Weight: 57 lbs
