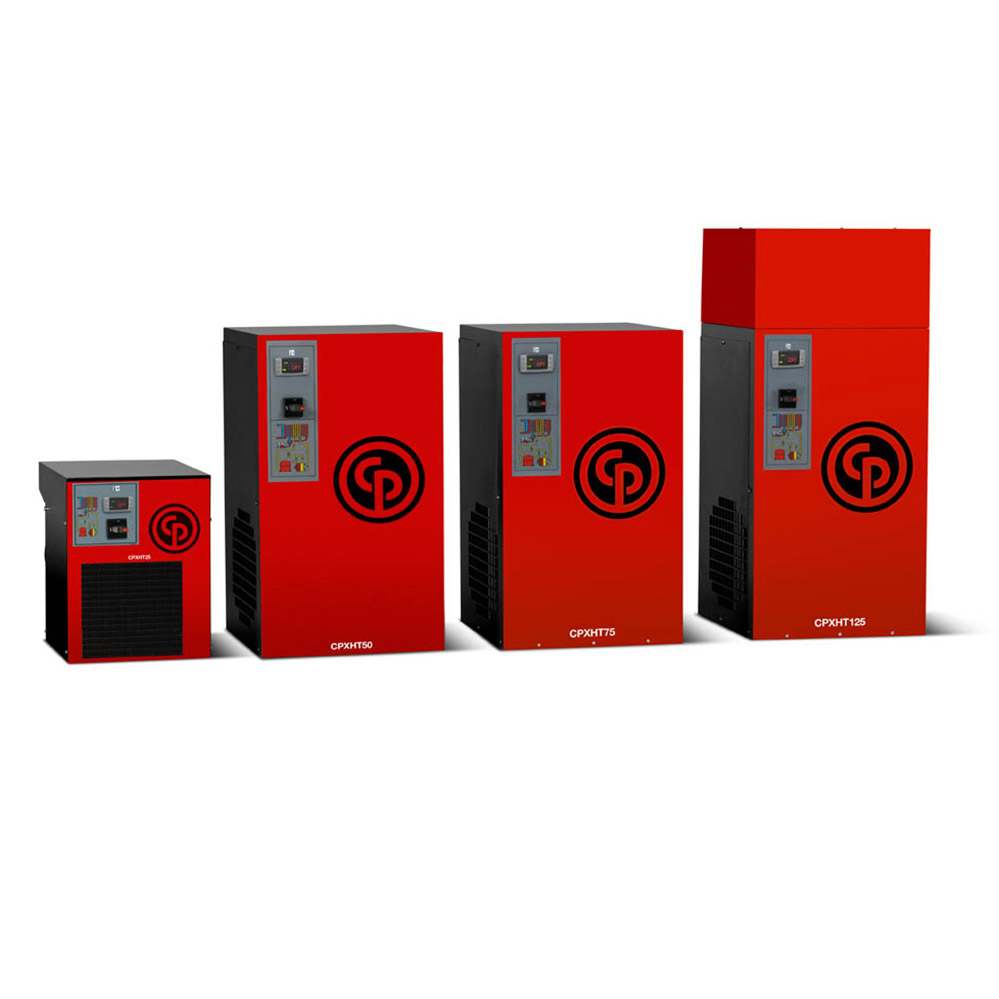

75CFM High Temperature Refrigerated Air Dryer By Chicago Pneumatic
Chicago Pneumatic logo


The 75CFM temperature refrigerated air dryer provides maximum efficiency and reliability. Requiring only a slight pressure drop, this air dryer treats compressed air by producing water vapor that condenses and discharges before it is sent through distribution. It uses different refrigerant characteristics to treat air compression. Its compact design enables it to fit seamlessly within any work or operational room or area.

Standard Features

  • Stainless steel copper heat exchanger
  • Water, oil, and dirt removal from air systems
  • Tool and cylinder damage prevention
  • Paint splash resistance
  • Minimal operation downtime
  • Boosted production and profits
  • Small, powerful, easily installed design
  • Cooling efficiency
  • Noise-reducing enclosure
  • Zero-loss condensation drain

Tech Specs

  • PSI: 232 (Pressure)
  • Inlet CFM Max: 75 (Inlet Flow)
  • Max PSI: 232
  • Volts: 115
  • Available Options: Stainless Steel/ Copper Heat Exchanger

Dimensions & Weight

  • NPT IN: .75″
  • NPT OUT: .75″
  • (A) Length: 18″
  • (B) Width: 23″
  • (C) Height: 31″
  • Weight: 168 lbs
