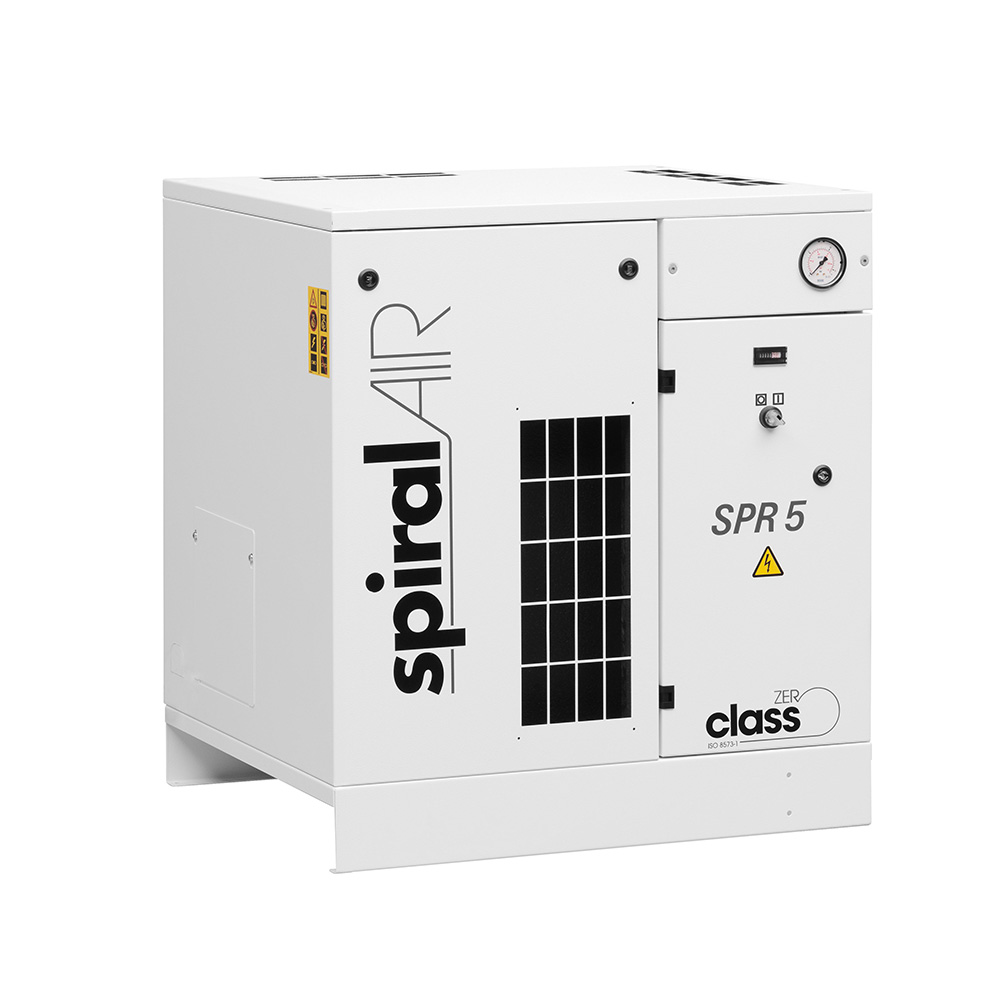

5HP 145PSI Oil-Free Scroll (Super Quiet) Compressor By Chicago Pneumatic
Chicago Pneumatic logo

SKU: 8153613347 Categories: ,


The 5HP 145PSI oil-Free scroll compressors offer outstanding features such as class zero certification and advanced moisture removal. The compressors’ innovative design reduces footprint and enhances user comfort, while the organized piping and advanced controller algorithm maximize efficiency and savings. It provides exceptional air quality and peace of mind, compactness for easy handling and maintenance, and remarkably low noise levels.



  • Class zero certified (no oil) and integrated dryer
  • Stacked modules for a minimized footprint
  • Forklift openings, non-sharp canopy corners, easy access for re-greasing and belt tensioning
  • From 63 to 65 dB(A),
  • Organized piping brings low-pressure drop while the algorithm of the graphic controller ensures optimum use of scroll modules for tight pressure band and maximum savings


Tech Specs

  • Horsepower: 5hp
  • PSI: 116 (Pressure)
  • Outlet CFM Max: 12 (Flow)
  • Max PSI: 116
  • Volts: 208, 230, 460
  • Phase: 3
  • Available Options: Does Not Include Dryer, Base Mounted, 2 Stage


Dimensions & Weight

  • Tank Orientation: Base Mounted
  • (A) Length: 29.9″
  • (B) Width: 27.2″
  • (C) Height: 33.1″
  • Weight: 293 lbs
