QRS 25 125 BM

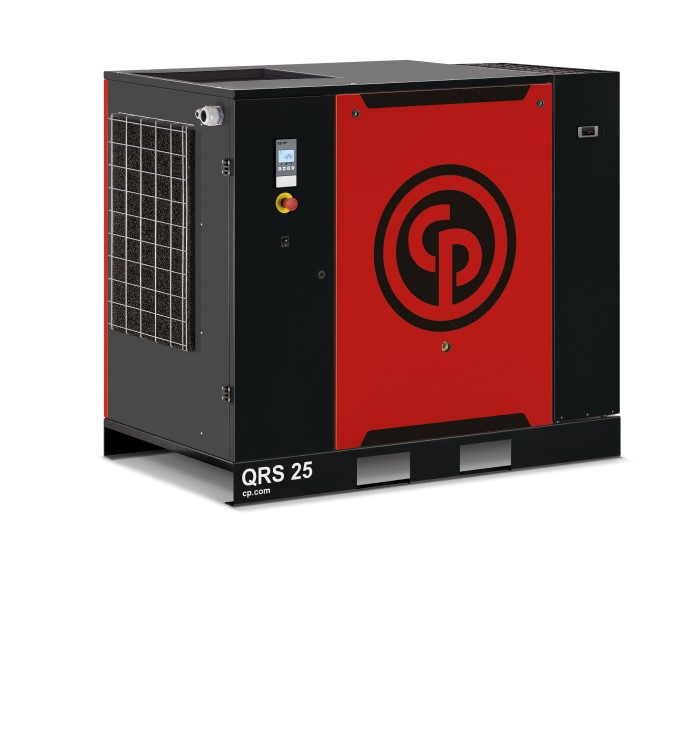

25HP 125PSI Tank Mounted Rotary Screw Air Compressor By Chicago Pneumatic (TRIVOLT)
Chicago Pneumatic logo

Description

The QRS 25 125 BM rotary screw compressors offer a versatile and efficient solution for compressed air systems. With customizable tank mounting options and the choice of adding a refrigerant dryer, these compressors provide a compact and all-in-one system. Experience low noise operation, cost-effective performance, and nearly constant duty, all backed by our industry-leading warranty and supported by the user-friendly ES4000 Basic Controller.



Space Savings

The QRS models can be mounted in a wide range of styles. Get easy access to your compression system in a single location.



Low Maintenance

The QRS is manufactured with non-wearable parts. Reduce maintenance services and experience dependability, durability, and top performance for years.



Quiet Operations

The sound levels of a QRS model can reach as low as 61 dB(A). Its exceptionally quiet canopy produces a sound between 61 and 68 dB(A).



Money Savings

Get all the benefits of advanced compression without a compression room. Since the QRS can be installed and operated virtually anywhere, you can spend less on piping. Eliminate significant pressure drops from your business.



Cutting-Edge Screw Air

The QRS generates a significant amount of air efficiently, more than previous models.



IE3 Motor

The IE3 motors operate efficiently throughout the workday, minimizing energy spending and waste.



Refrigeration

Some QRS models can be equipped with a refrigerator to produce dry air.



The QRS’s Standard Features

  • Standard Features
  • Low Sound Enclosures
  • Tri-voltage TEFC drive motors
  • All Major Components are Vibration Isolated
  • ES4000 Basic Controller (10-20M only)
  • 125 & 150 psig standard (10-20M only, 100 & 175 available with kit)
  • Simplified Maintenance from a Single Panel
  • Start/Stop Controls on 3 phase 3-7.5 HP units
  • Spin-on Oil & Separator Filters
  • Load/No Load Operation with Timed Shutdown on 10-20M and Single Phase Compressors
  • Lift Gate Charge $125 net (minimum)



Maximize Compression With the ES4000 Basic Controller

The ES4000 basic controller enables users to efficiently reduce their energy use and power down their operations. It’s the best choice for convenient operation. Here’s what it provides:

  • Icon-based display with pressure and temperature settings/readings
  • Running and working hours
  • Service warnings
  • Element outlet temperature reading
  • Automatic restart after voltage failure



Tech Specs

  • Horsepower: 25hp
  • PSI: 125 (Pressure)
  • Outlet CFM Max: 99 (Flow)
  • Max PSI: 125
  • Volts: 208, 230, 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Base Mounted, Does Not Include Tank



Dimensions & Weight

  • Tank Size: 120 Gallons
  • Tank Orientation: Horizontal
  • (A) Length: 75″
  • (B) Width: 31″
  • (C) Height: 72″
  • Weight: 1202 lbs
