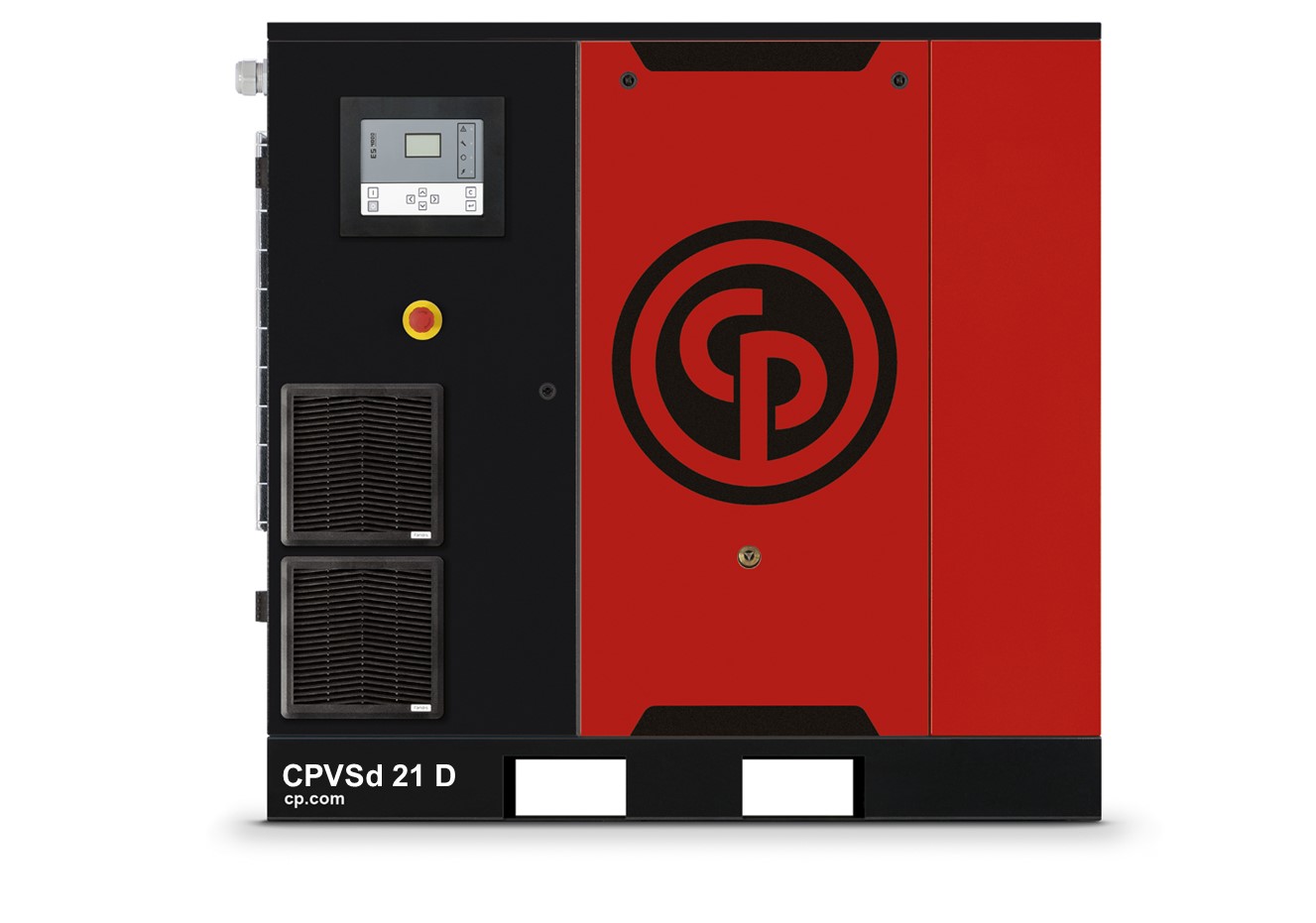

CPVSd 21D BM

Description

Discover the CPVSd 21D BM, an efficient solution for reducing operating costs and maximizing energy savings. With its variable speed technology and direct drive transmission, this compressor offers immense energy savings. Equipped with the ES4000 Advanced controller, it ensures stable pressure and intelligent shutdowns, resulting in significant cost reductions.

Standard Features

• Low sound enclosure
• Direct drive transmission
• 73-182 psig pressure range
• 20-100% turndown capacity
• ES4000 Advanced graphic controller
• 460V standard
• 230V available for tank-mounted models
• IP55 TEFC High-Frequency Motors designed for variable speed use
• Heavy duty, 2-stage pre-filtration
• Shipped with synthetic oil
• Easily accessible integrated inverter drives
• Stable pressure due to Variable Speed Drive
• ECOntrol 6i capable
• ICONS capable

Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.

Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.

Features

• Graphic Display
• Automatic Restart After Voltage Failure
• I/O Expandable
• Graphic Service Plan Indicator
• Remote Pressure Sensor Possible
• Real-Time Trending
• Remote Visualization
• Master Control Capability
• Programmable daily and weekly schedule

Tech Specs

• Horsepower: 20hp
• PSI: 182 (Pressure)
• Outlet CFM Max: 101 (Flow)
• Max PSI: 182
• Volts: 460
• Phase: 3
• Fuel: Electric
• Available Options: Does Not Include Dryer, Base Mounted

Dimensions & Weight

• Tank Orientation: None
• (A) Length: 47.2″
• (B) Width: 26″
• (C) Height: 48″
• Weight: 728 lbs
