CPVSd 21BM

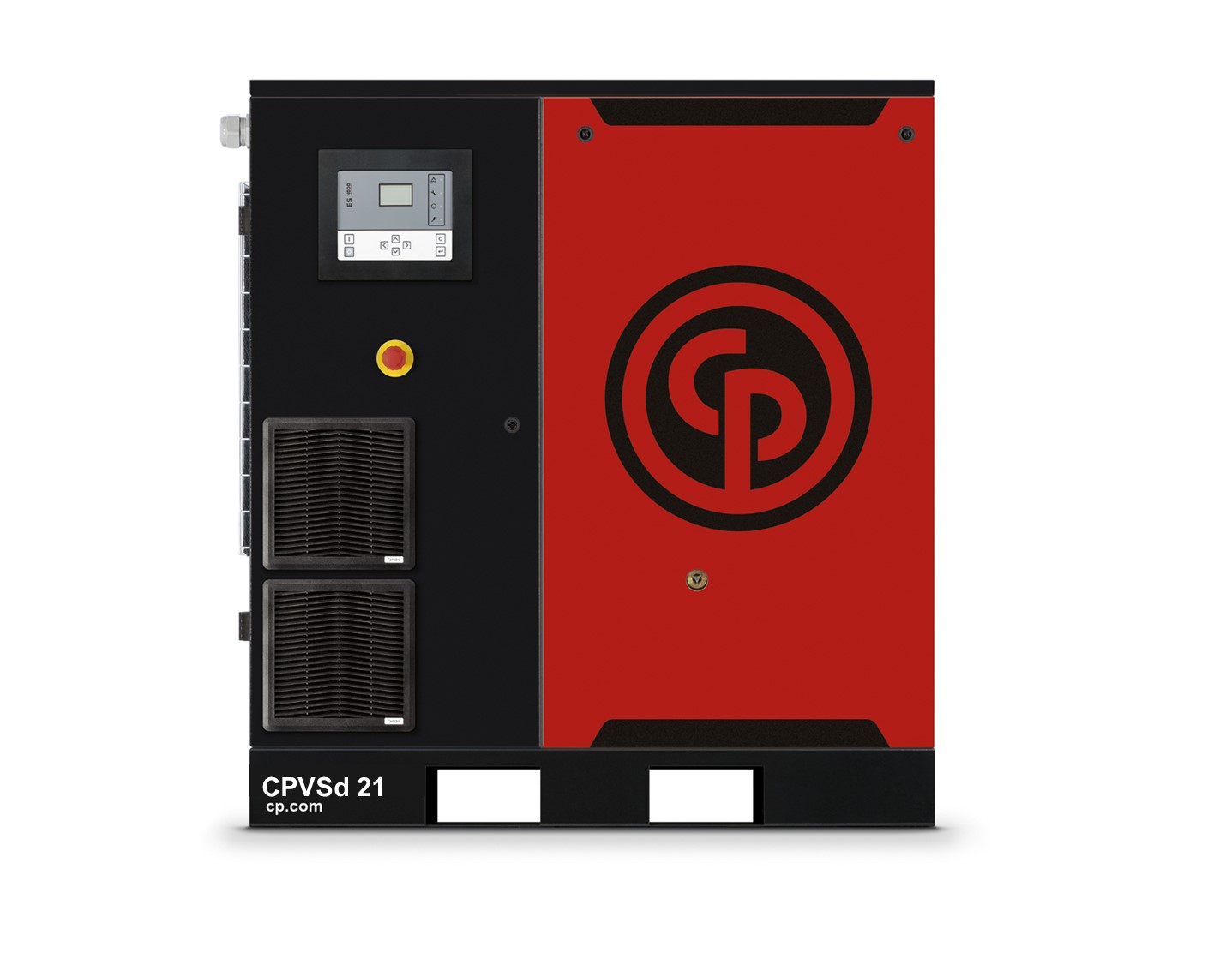

20HP 182PSI Base Mounted Variable Speed Rotary Screw Air Compressor By Chicago Pneumatic (460v)

Description

With its variable speed technology and direct drive transmission, the CPVSd 21BM delivers up to 30% energy savings. The ES4000 Advanced Controller ensures stable system pressure, offers intelligent shutdown options and provides real-time monitoring for proactive maintenance. It can adjust capacity to match the application requirements of any work environment or operation.



Standard Features

  • Low sound enclosure
  • Direct drive transmission
  • 73-182 psig pressure range
  • 20-100% turndown capacity
  • ES4000 Advanced graphic controller
  • 460V standard
  • 230V available for tank-mounted models
  • IP55 TEFC High-Frequency Motors designed for variable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed Drive
  • ECOntrol 6i capable
  • ICONS capable



Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.



Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.



Features

  • Graphic Display
  • Automatic Restart After Voltage Failure
  • I/O Expandable
  • Graphic Service Plan Indicator
  • Remote Pressure Sensor Possible
  • Real-Time Trending
  • Remote Visualization
  • Master Control Capability
  • Programmable daily and weekly schedule



Tech Specs

  • Horsepower: 20hp
  • PSI: 182 (Pressure)
  • Outlet CFM Max: 101 (Flow)
  • Max PSI: 182
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Base Mounted



Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 47.2″
  • (B) Width: 26″
  • (C) Height: 48″
  • Weight: 728 lbs
