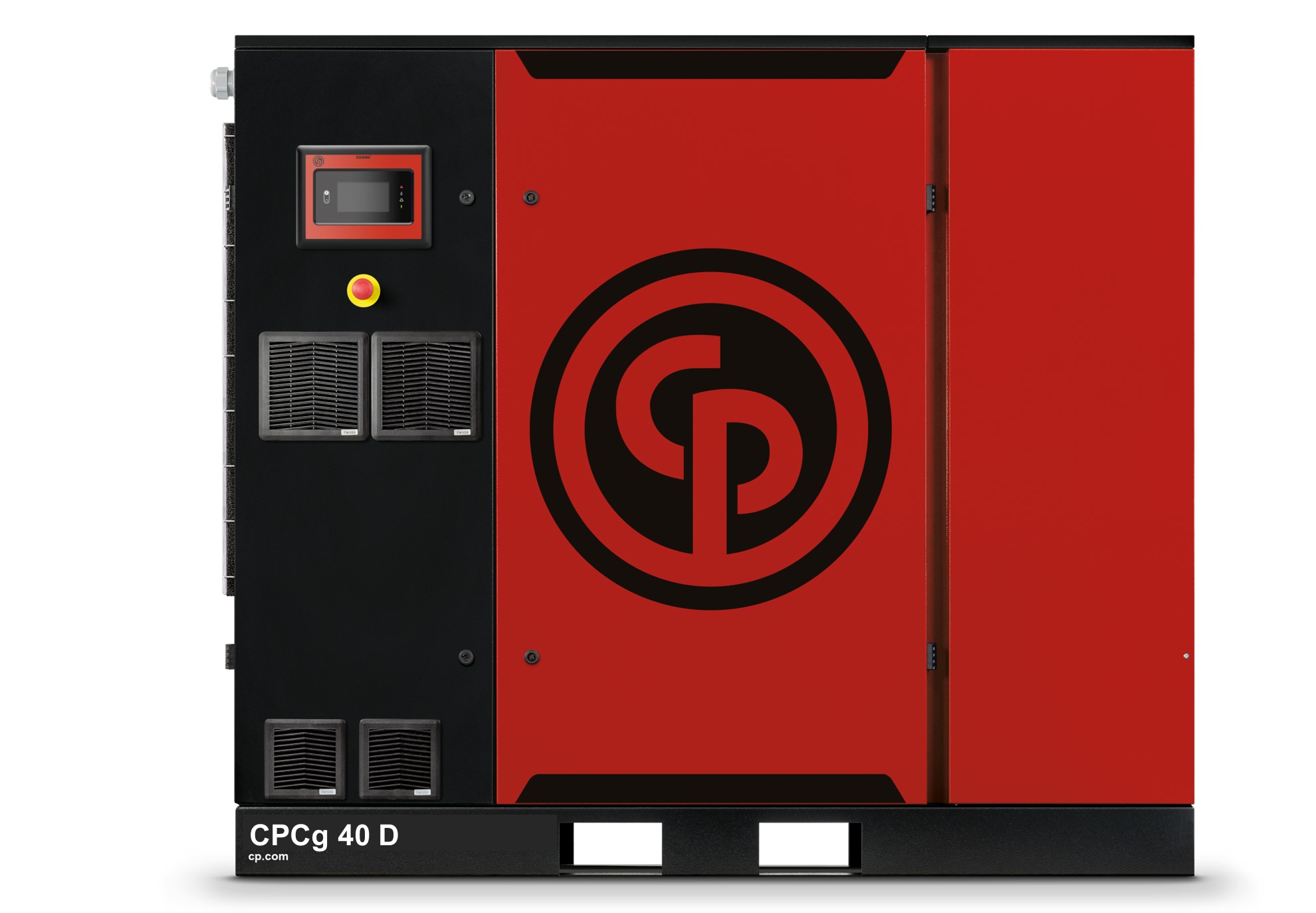

CPCg 40 D

40HP 125PSI Industrial Gear Driven Rotary Screw Air Compressor With DRYER By Chicago Pneumatic (230v)
Chicago Pneumatic logo


These updated industrial gear-driven rotary screw air compressors offer innovative, worry-free operation with a remarkable range that excels in reliability, simplicity, and energy efficiency. With a compact design that boasts a 25% smaller footprint than their predecessors, these compressors provide superior performance even in challenging conditions while minimizing maintenance for optimal uptime and productivity. The Intelligent CONnectivity System (ICONS) delivers valuable data and insights to optimize energy consumption and ensure ISO50001 compliance.


Unmatched Design

  • Compact size and build to save space and minimize noise emissions
  • Will operate dependably in temperatures as high as 46 degrees Celsius
  • Manufactured with durable components, highly resistant to wear and tear for minimal maintenance
  • Features an IP66-enclosed drive train that operates reliably in intense dust and humidity
  • IPM direct drive for continuous, reliable performance


Cost-Effective Performance

  • Prevent losses with the CPCg’s integrative direct drive transmission
  • Reduce your footprint and save up to 30% more space
  • Take control of your compression with the cutting-edge Airlogic2T controller
  • Maximize performance in the harshest environments with a gear drive
  • Expect optimal operation in long-duty cycle compressor rooms


Near-Silent Operation

The CPCg can be installed virtually anywhere in your workspace or operation. Place it in a compressor room or directly on your work floor, whichever works best for you and your teams. Its sound emission can reach as low as 66 db(A), enabling teams to better focus on their work.


Advanced ICONS Controls

The CPCg is built with an Intelligent CONnectivity System (ICONS). This system provides invaluable data regarding your compression performance through any smart or mobile device.

  • Detect concerns or issues with your operation so you can address them quickly to save valuable production time and output
  • Evaluate your energy consumption, loss, or waste and find ways to reduce your CO2 emissions.
  • Gain access to detailed energy reports to ensure your operation is ISO50001 compliant


Tech Specs

  • Horsepower: 40hp
  • PSI: 125 (Pressure)
  • Outlet CFM Max: 179.9 (Flow)
  • Max PSI: 125
  • Volts: 230
  • Phase: 1
  • Fuel: Electric
  • Available Options: Dryer Included


Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 71.3″
  • (B) Width: 32.7″
  • (C) Height: 61.2″
  • Weight: 1411 lbs
