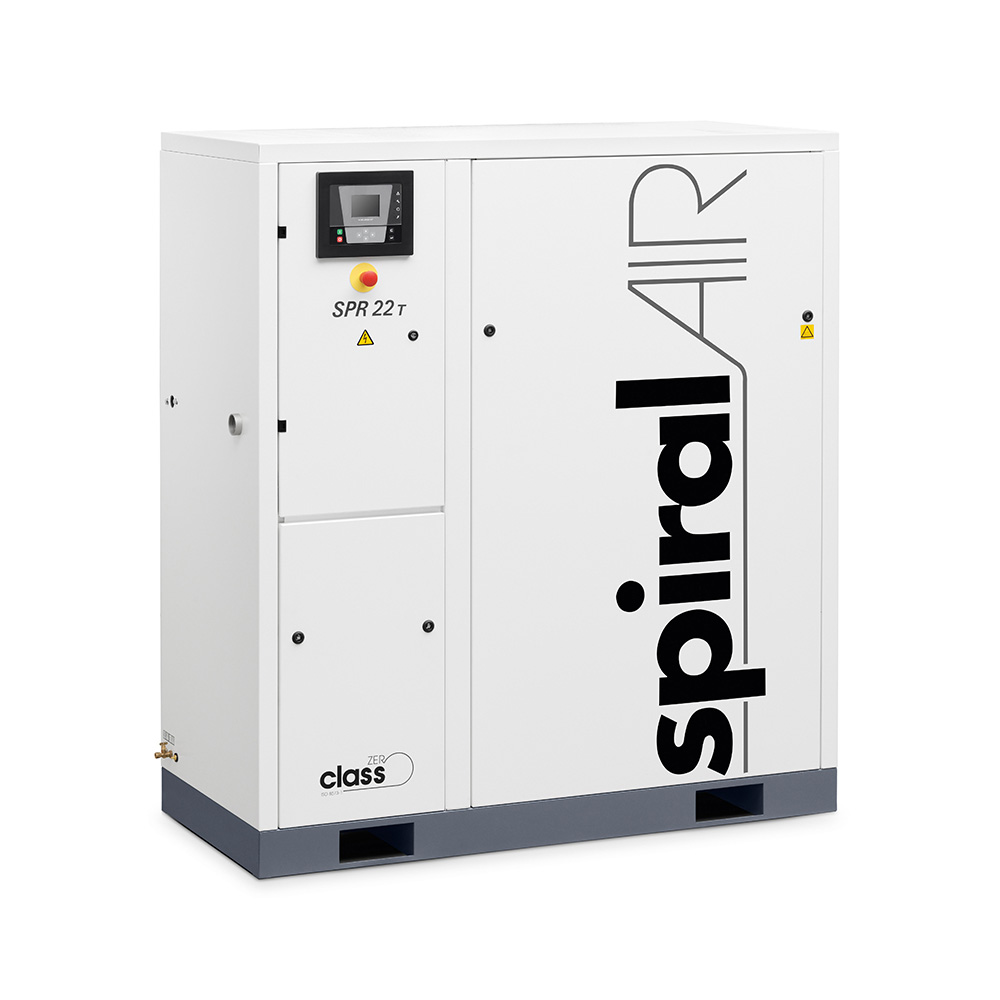

SPR 22 T

22.5HP 100PSI Oil-Free Scroll (Super Quiet) Compressor With DRYER By Chicago Pneumatic (460v, 64dBA)
Chicago Pneumatic logo

SKU: 8153605202 Categories: ,


Chicago Pneumatic’s 22.5HP 100PSI oil-free scroll compressor is a game-changer for industries that operate and succeed with clean compression. They offer a host of benefits such as exceptional air quality, compactness, and low noise levels. With thoughtful design elements like forklift openings, re-greasing accessibility, and optimized scroll module usage, these compressors bring incredible user comfort.



  • Class zero certified (no oil) and integrated dryer
  • Stacked modules for a minimized footprint
  • Forklift openings, non-sharp canopy corners, easy access for re-greasing and belt tensioning
  • From 63 to 65 dB(A) sound levels
  • Organized piping


Tech Specs

  • Horsepower: 22.5hp
  • PSI: 100 (Pressure)
  • Outlet CFM Max: 65 (Flow)
  • Max PSI: 100
  • Volts: 460
  • Phase: 3
  • Available Options: Base Mounted, 2 Stage, Dryer Included


Dimensions & Weight

  • (A) Length: 64.1″
  • (B) Width: 29.5″
  • (C) Height: 72.6″
  • Weight: 1329 lbs
