RCP-C7583VSC24

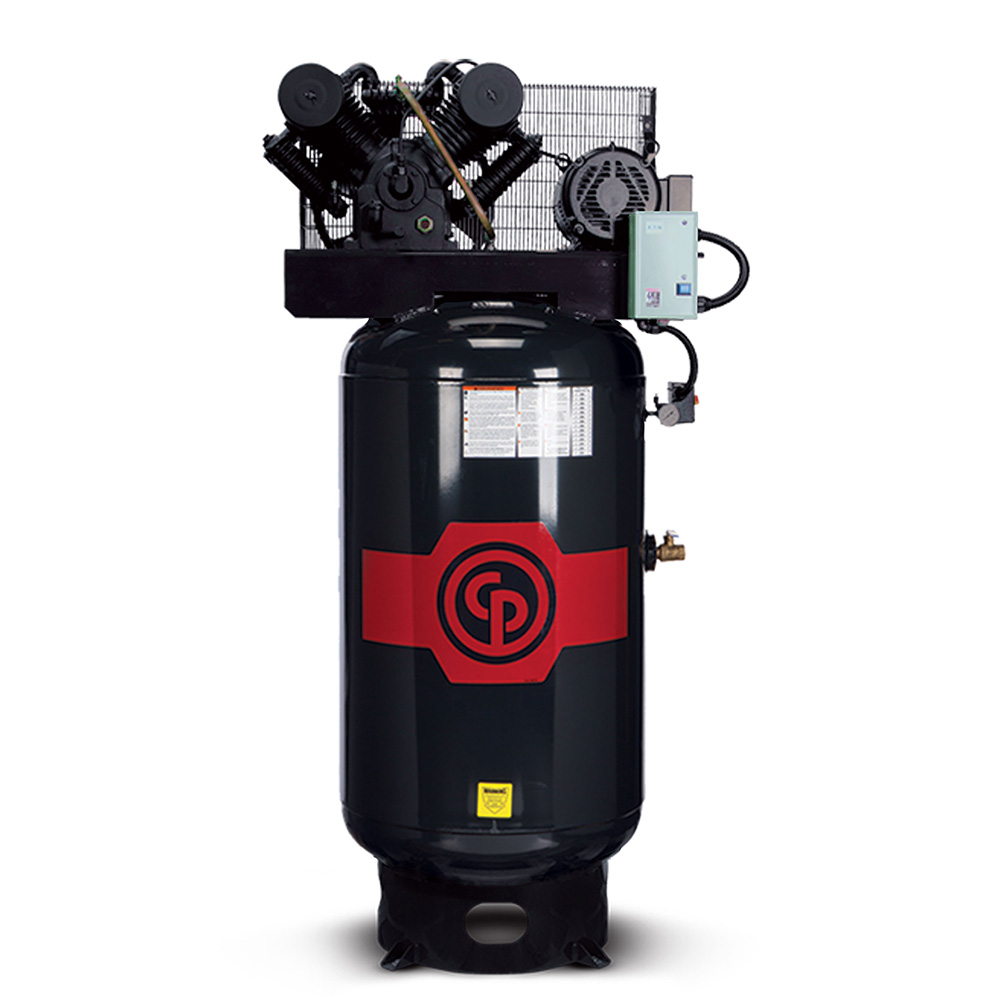

7.5HP 175PSI 80GAL Tank Mounted Cast Iron Two Stage Compressor By Chicago Pneumatic (460v)
Chicago Pneumatic logo

Description

This RCP compressor comprises robust construction with a cast iron cylinder, crankshaft, and valve plates, ensuring long-lasting reliability throughout daily operations and workflow. Its aluminum head and coolers with deep fins provide an unparalleled dissipation of heat. With oversized main bearings and automotive-style replaceable insert bearings, the compressor pump is built to endure for years without interruption.



RCP Iron Series Standard Features:

  • Start-Stop Pressure Switch Control
  • CRN and ASME- certified tank
  • Fully Enclosed Belt Guard
  • Discharge Valve
  • Magnetic Starter and Alternator



Premium Model Features

  • Low Oil Level Switch
  • Automatic Tank Drain
  • Belt Guard Aftercooler



Tech Specs

  • Horsepower: 7.5hp
  • PSI: 175 (Pressure)
  • Outlet CFM Max: 27 (Flow)
  • Max PSI: 175
  • Volts: 460
  • Available Options: Tank Mounted, 2 Stage



Dimension & Weight

  • Tank Size: 80 Gallons
  • Tank Orientation: Vertical
  • (A) Length: 42″
  • (B) Width: 24″
  • (C) Height: 71″
  • Weight: 650 lbs
