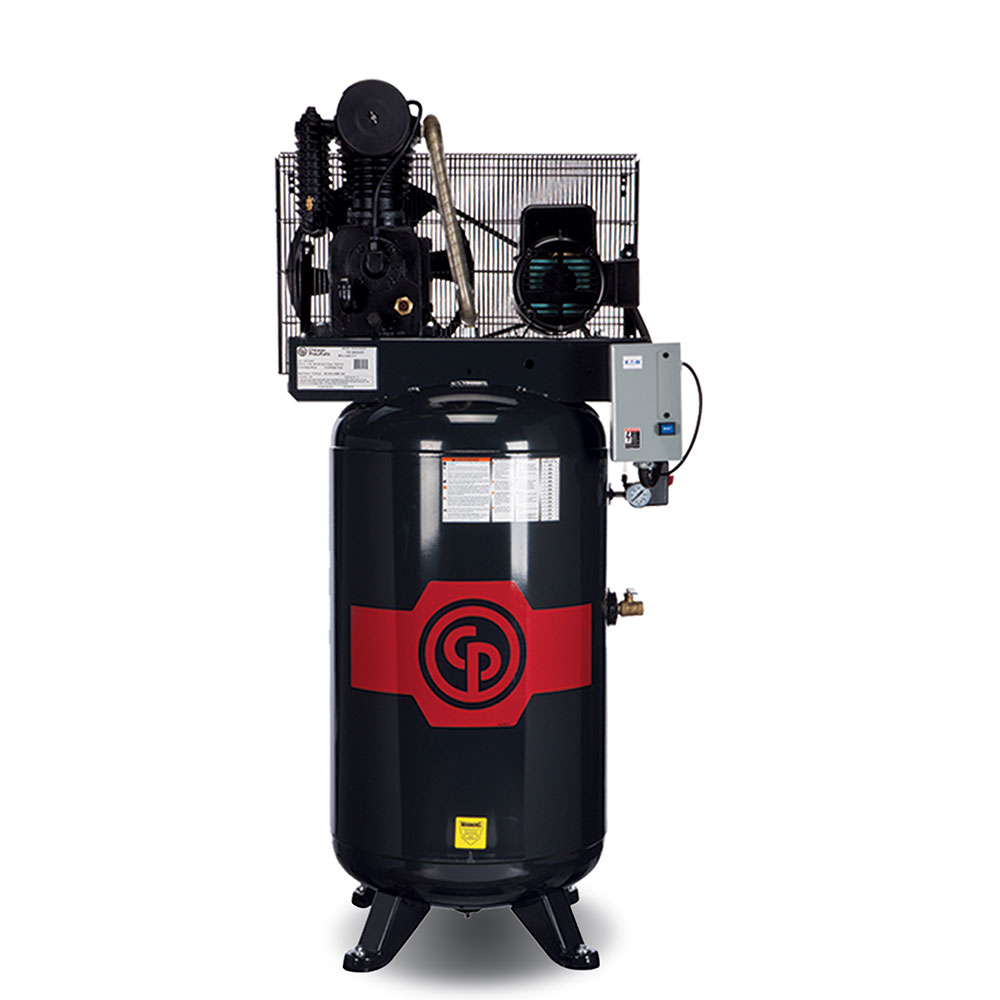

7.5HP 175PSI Tank Mounted Cast Iron Two Stage Reciprocating Air Compressor By Chicago Pneumatic (1phase)
Chicago Pneumatic logo


With a solid cast iron cylinder, crankshaft, and valve plates, the RCP 1-phase compressor ensures reliability within any operation or working environment. Its aluminum head and coolers with deep fins provide exceptional heat dissipation. Smooth operation is achieved through balanced pistons and crankshaft, while oversized main and automotive grade insert bearings enhance durability. It’s the top choice for outstanding airflow.


RCP Iron Series Standard Features:

  • Start-Stop Pressure Switch Control
  • CRN and ASME- certified tank
  • Fully Enclosed Belt Guard
  • Discharge Valve
  • Magnetic Starter and Alternator


Premium Model Features

  • Low Oil Level Switch
  • Automatic Tank Drain
  • Belt Guard Aftercooler


Tech Specs

  • Horsepower: 7.5hp
  • PSI: 175 (Pressure)
  • Outlet CFM Max: 23 (Flow)
  • Max PSI: 175
  • Volts: 208, 230
  • Phase: 1
  • Available Options: Tank Mounted, 2 Stage


Dimension & Weight

  • Tank Size: 80 Gallons
  • Tank Orientation: Vertical
  • (A) Length: 37″
  • (B) Width: 24″
  • (C) Height: 72″
  • Weight: 600 lbs
