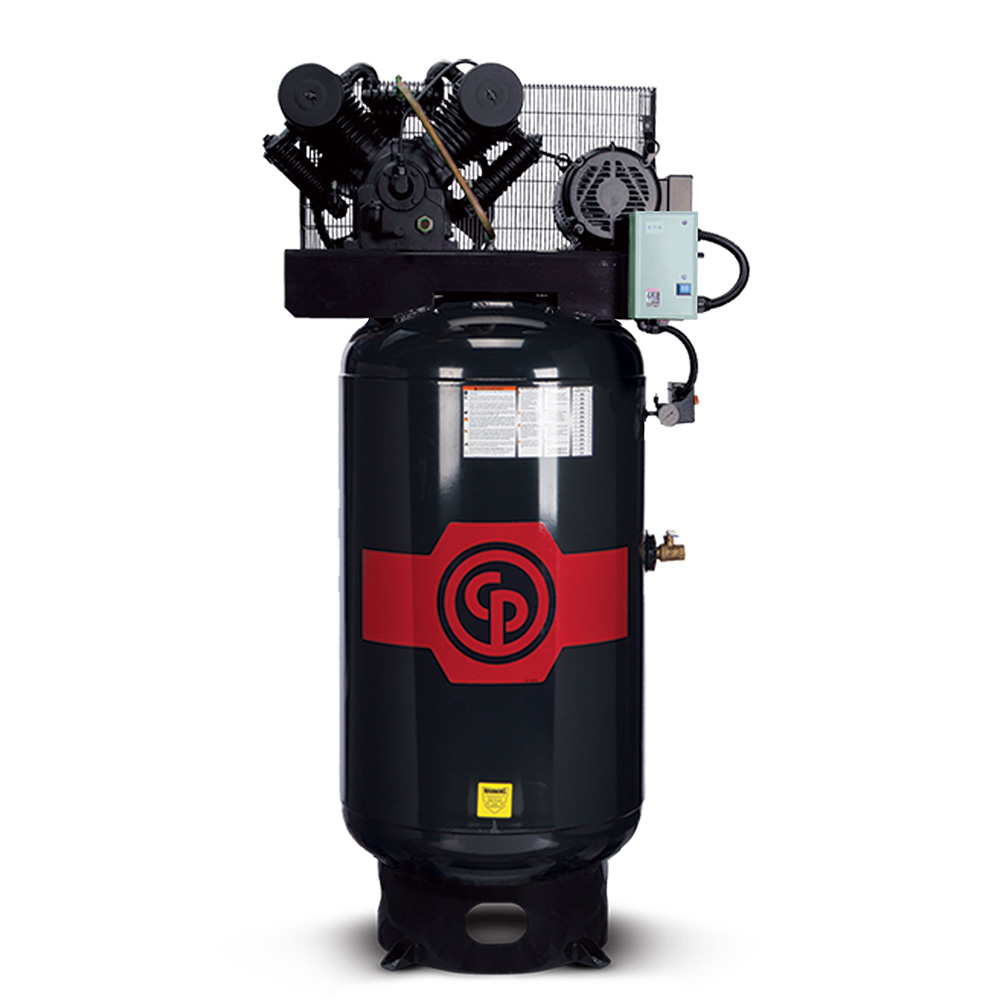

7.5HP 175PSI 80GAL Premium Vertical Tank Mounted Cast Iron Two Stage Reciprocating Air Compressor By Chicago Pneumatic (208-230v)
Chicago Pneumatic logo


The RCP compressor delivers exceptional performance and durability. Its aluminum head and coolers with deep fins ensure optimal heat dissipation, while balanced pistons and crankshaft guarantee smooth and quiet operation. It features a solid cast iron cylinder, crankshaft, and valve plates built to withstand for years. They are manufactured from simplex to duplex models customized to specific work environments. The RCP compressors offer a wide range of power options to meet various industrial needs.


RCP Iron Series Standard Features:

  • Start-Stop Pressure Switch Control
  • CRN and ASME- certified tank
  • Fully Enclosed Belt Guard
  • Discharge Valve
  • Magnetic Starter and Alternator


Premium Model Features

  • Low Oil Level Switch
  • Automatic Tank Drain
  • Belt Guard Aftercooler


Tech Specs

  • Horsepower: 7.5hp
  • PSI: 175 (Pressure)
  • Outlet CFM Max: 23 (Flow)
  • Max PSI: 175
  • Volts: 208, 230
  • Phase: 1
  • Available Options: Tank Mounted, 2 Stage


Dimension & Weight

  • Tank Size: 80 Gallons
  • Tank Orientation: Vertical
  • (A) Length: 37″
  • (B) Width: 24″
  • (C) Height: 72″
  • Weight: 610 lbs
