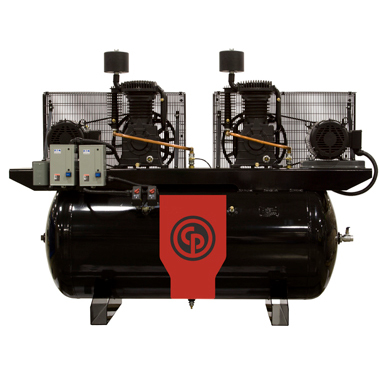

20HP 175PSI 200GAL Tank Mounted Cast Iron Two Stage Reciprocating Duplex Compressor By Chicago Pneumatic (460v)
Chicago Pneumatic logo


The RCP 460v compressors feature robust construction, including solid cast iron components. Its balanced pistons and crankshaft enable it to operate quietly, reducing distractions in the work environment. These compressors deliver 10 to 20 HP and up to 70 acfm on 3-phase power. Additional features include start-stop pressure switch control, a fully enclosed belt guard, and premium models offering low-oil level switches and automatic tank drains.


RCP Iron Series Standard Features:

  • Start-Stop Pressure Switch Control
  • CRN and ASME- certified tank
  • Fully Enclosed Belt Guard
  • Discharge Valve
  • Magnetic Starter and Alternator


Premium Model Features

  • Low Oil Level Switch
  • Automatic Tank Drain
  • Belt Guard Aftercooler


Tech Specs

  • Horsepower: 20hp
  • PSI: 175 (Pressure)
  • Outlet CFM Max: 70 (Flow)
  • Max PSI: 175
  • Volts: 460
  • Phase: 3
  • Available Options: Tank Mounted, 2 Stage, Duplex


Dimension & Weight

  • Tank Size: 200 Gallons
  • Tank Orientation: Horizontal
  • (A) Length: 85″
  • (B) Width: 27″
  • (C) Height: 52″
  • Weight: 1525 lbs
