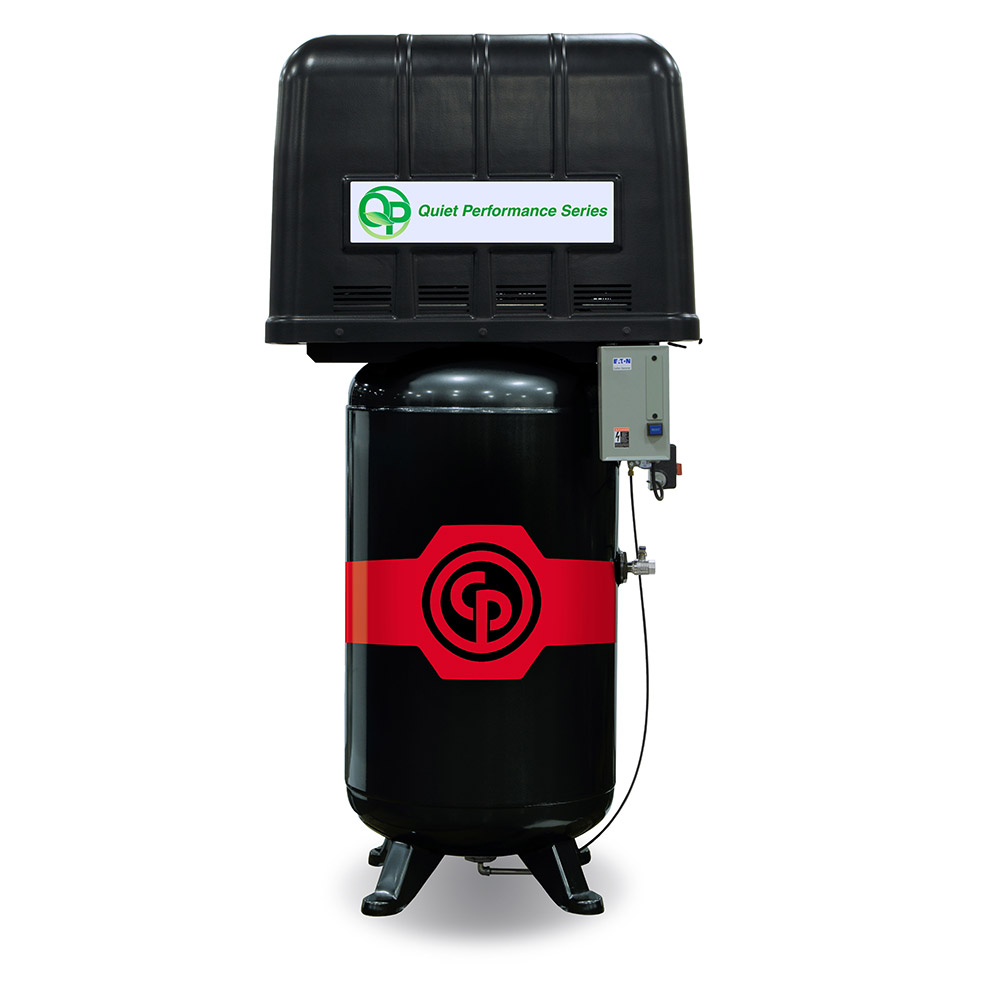

RCP-7583VQP
7.5HP 175PSI Tank Mounted Cast Iron Two Stage Quiet Enclosed Reciprocating Air Compressor By Chicago Pneumatic (3phase)
Description
The RCP 3 phase, 175PSI compressor series is built to provide durability and exceptional performance with its solid cast iron components and superior heat dissipation capability. Every unit is totally tested at full pressure.
Standard Features:
- 12 Volt electric start and recoil start
- 12 Volt alternator (Honda and Kohler Models)
- Start key / panel
- Oil monitor
- Engine slowdown (pilot valve)
- Fully enclosed belt guard
- EZ pull tank drain
- ASME tank and safety valves
- 3/4″ tank discharge valve
Tech Specs
- Horsepower: 7.5hp
- PSI: 175 (Pressure)
- Outlet CFM Max: 25 (Flow)
- Max PSI: 175
- Volts: 208, 230
- Phase: 3
- Available Options: Tank Mounted, 2 Stage
Dimensions & Weight
- Tank Size: 80 Gallons
- Tank Orientation: Vertical
- (A) Length: 39″
- (B) Width: 24″
- (C) Height: 80″
- Weight: 537 lbs
