RCP-3561V

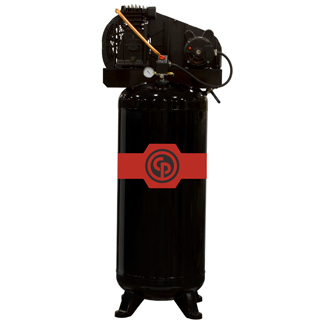

3.5HP 135PSI Vertical Tank Mounted Reciprocating Air Compressor By Chicago Pneumatic
Description
The RCP 135PSI compressor boasts durability and top-notch performance with features like a solid cast iron cylinder, valves, and crankshaft. Its aluminum head, coolers, and deep fins ensure excellent heat dissipation while the balanced pistons and crankshaft provide a streamlined and low-noise operation.
Standard Features
- Start/Stop Pressure Switch Control
- ASME Safety Valves on tank and pump
- Fully Enclosed Belt Guard
- Tank Drain And Discharge Valve
Tech Specs
- Horsepower: 3.5hp
- PSI: 135 (Pressure)
- Outlet CFM Max: 12 (Flow)
- Aftercooler: Not Included
- Max PSI: 135
- Volts: 208, 230
- Phase: 1
- Available Options: Does Not Include Dryer, Tank Mounted
Dimensions & Weight
- Tank Size: 60 Gallons
- Tank Orientation: Vertical
- (A) Length: 22″
- (B) Width: 26″
- (C) Height: 68″
- Weight: 261 lbs
