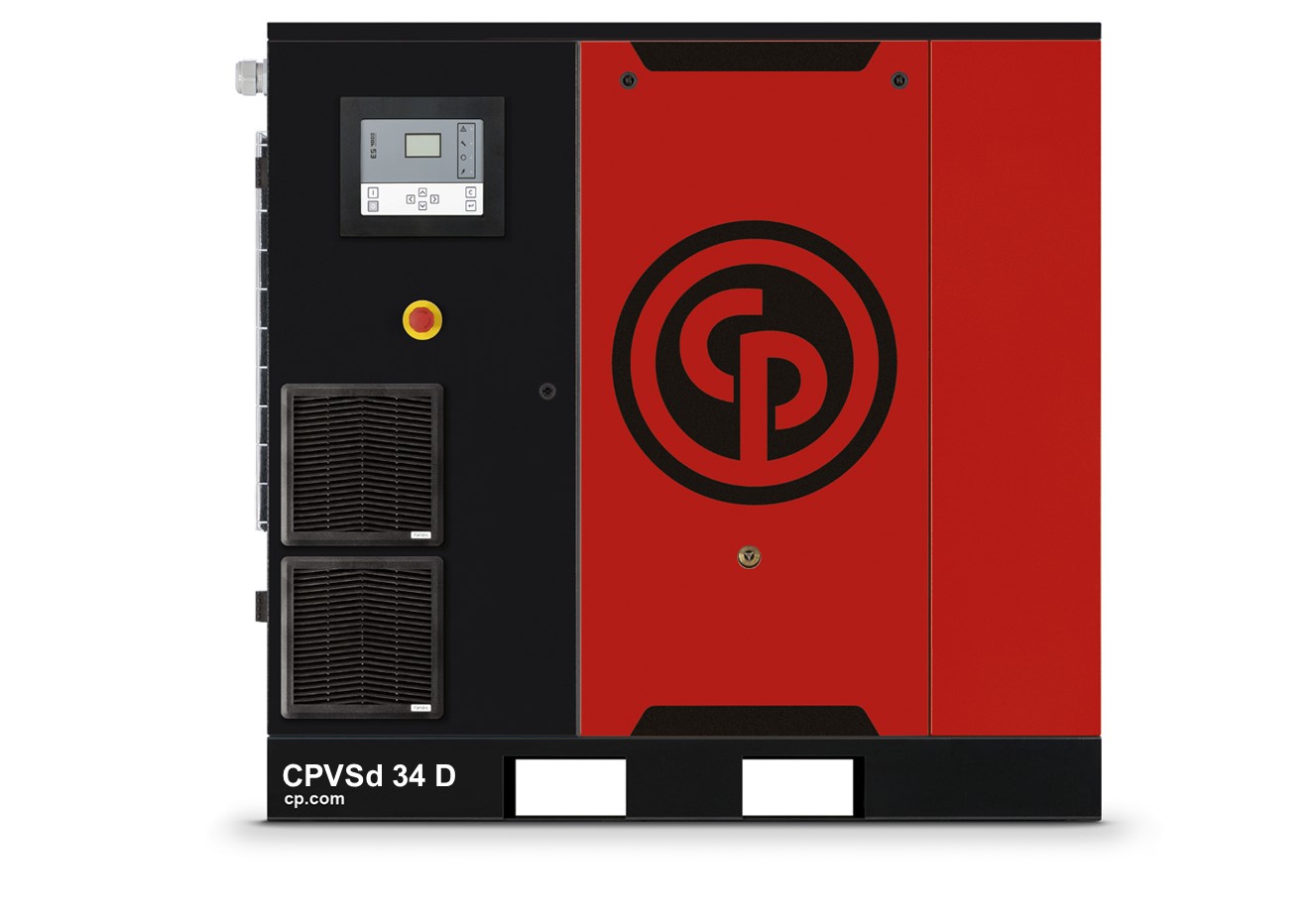

CPVSd 34D BM

35HP 182PSI Base Mounted Variable Speed Rotary Screw Air Compressor With DRYER By Chicago Pneumatic (460v)
Chicago Pneumatic logo

Description

With the CPVSd 34D BM, you can optimize your compressed air system by achieving outstanding energy savings. The ES4000 Advanced control unit ensures efficient operation, reducing long periods of unloaded operation and power costs. Benefit from intelligent shutdown features, real-time monitoring, and customizable scheduling for enhanced productivity and savings.



Standard Features

  • Low sound enclosure
  • Direct drive transmission
  • 73-182 psig pressure range
  • 20-100% turndown capacity
  • ES4000 Advanced graphic controller
  • 460V standard
  • 230V available for tank-mounted models
  • IP55 TEFC High-Frequency Motors designed for variable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed Drive
  • ECOntrol 6i capable
  • ICONS capable



Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.



Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.



Features

  • Graphic Display
  • Automatic Restart After Voltage Failure
  • I/O Expandable
  • Graphic Service Plan Indicator
  • Remote Pressure Sensor Possible
  • Real-Time Trending
  • Remote Visualization
  • Master Control Capability
  • Programmable daily and weekly schedule



Tech Specs

  • Horsepower: 35hp
  • PSI: 182 (Pressure)
  • Outlet CFM Max: 148 (Flow)
  • Max PSI: 182
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Base Mounted, Dryer Included



Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 53.1″
  • (B) Width: 32.9″
  • (C) Height: 48″
  • Weight: 971 lbs
