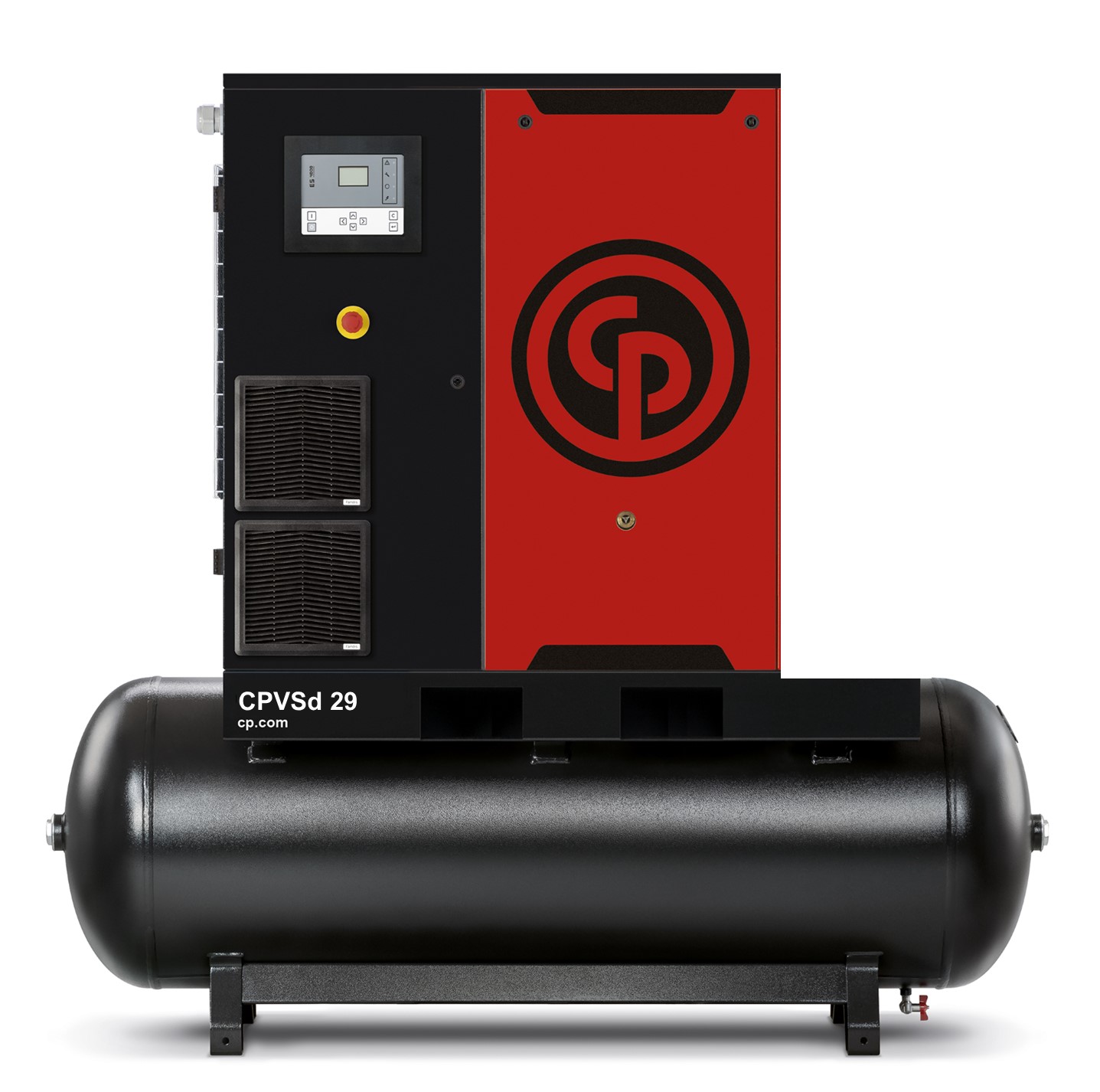

CPVSd 29 TM

30HP 182PSI Tank Mounted Variable Speed Rotary Screw Air Compressor By Chicago Pneumatic (460v)
Chicago Pneumatic logo

Description

The CPVSd has a capacity modulation feature, ensuring that only the required amount of air is provided. With its variable speed technology and direct drive transmission, it delivers energy savings of up to 30%. The CPVSd can function as a stand-alone or trim machine when networked with a base-load compressor, providing flexibility and efficiency in compressed air solutions.



Standard Features

  • Low sound enclosure
  • Direct drive transmission
  • 73-182 psig pressure range
  • 20-100% turndown capacity
  • ES4000 Advanced graphic controller
  • 460V standard
  • 230V available for tank-mounted models
  • IP55 TEFC High-Frequency Motors designed for variable speed use
  • Heavy duty, 2-stage pre-filtration
  • Shipped with synthetic oil
  • Easily accessible integrated inverter drives
  • Stable pressure due to Variable Speed Drive
  • ECOntrol 6i capable
  • ICONS capable



Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.



Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.



Features

  • Graphic Display
  • Automatic Restart After Voltage Failure
  • I/O Expandable
  • Graphic Service Plan Indicator
  • Remote Pressure Sensor Possible
  • Real-Time Trending
  • Remote Visualization
  • Master Control Capability
  • Programmable daily and weekly schedule



Tech Specs

  • Horsepower: 30hp
  • PSI: 182 (Pressure)
  • Outlet CFM Max: 139 (Flow)
  • Max PSI: 182
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Does Not Include Dryer, Tank Mounted



Dimensions & Weight

  • Tank Size: 132 Gallons
  • Tank Orientation: Horizontal
  • (A) Length: 76.4″
  • (B) Width: 32.9″
  • (C) Height: 72.2″
  • Weight: 1202 lbs
