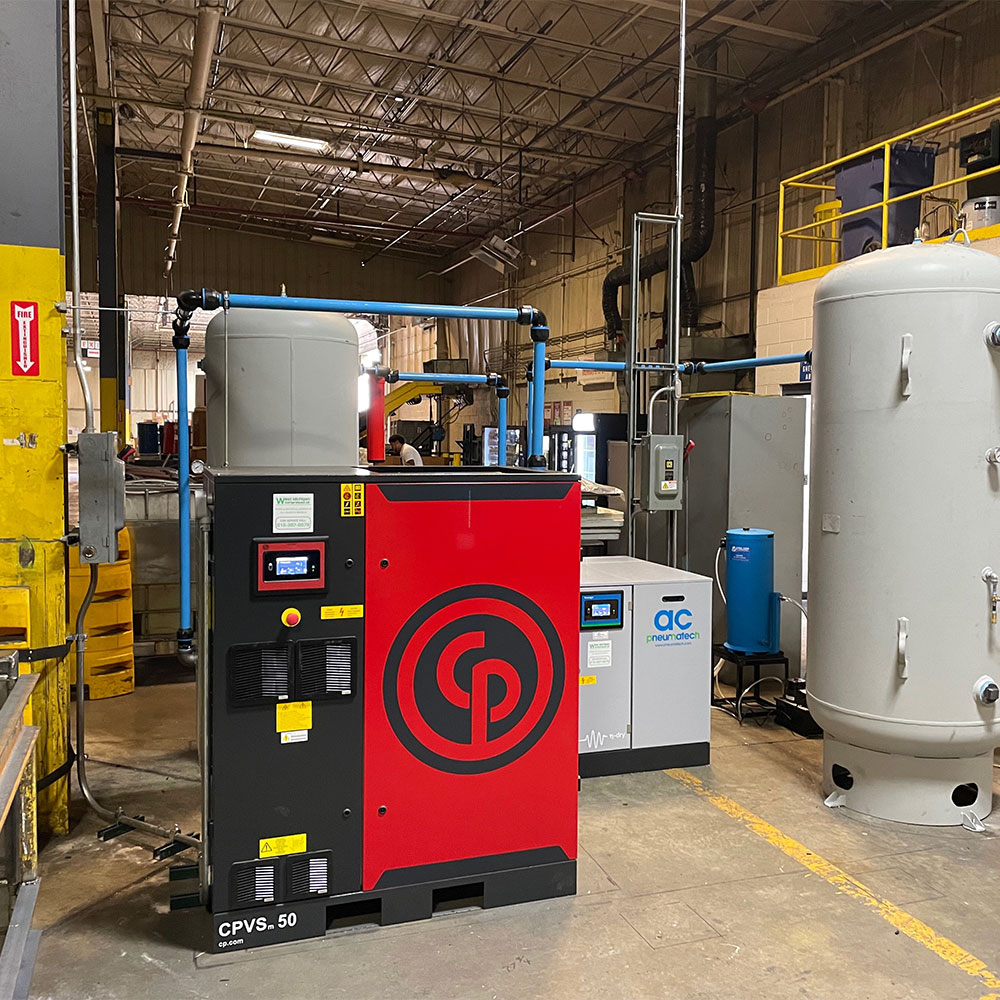

CPVS 50 D PM

50HP 188PSI Variable Speed Drive Rotary Screw Air Compressor With Permanent Magnet Motor and Dryer By Chicago Pneumatic (460v)
Chicago Pneumatic logo

Description

Chicago Pneumatic introduces the CPVS 50 D, a groundbreaking variable speed, oil-injected screw compressor designed to maximize energy efficiency and increase cost savings. With globally recognized screw elements and a maintenance-free design, CPVS 50 D ensures reliable performance, optimal cooling, and extended lifetime, making it the ideal choice for businesses seeking a compressed air solution that adds value and reduces expenses.



Receive Reduced Costs and Energy Savings

  • In-house designed iPM motor with IE4 super premium efficiency
  • The latest in-house screw elements for superior energy efficiency
  • Integrated direct drive transmission to reduce loss
  • Innovative inlet valve for maximizing flow



Top Dependability and Optimization

  • An IP66-rated iPM motor, protected against harsh dust and water
  • World-class screw elements to fit any compressor installation
  • Exceptional water cooling through the oil-cooling principle



Reduced Downtime and Minimal Upkeep

  • Regrease-free moto bearing
  • Coupling-free direct drive design
  • Smart inlet valve



Standard Features

  • Low sound enclosure
  • Min/Max outlet pressure: 60-188 psi
  • 30-100% capacity
  • Networking capability
  • ES4000T Touchscreen controller
  • iPM motor
  • Imperium inverter
  • Separate oil and air coolers
  • High-efficiency radial fan
  • 2-stage filtration
  • Base mounted



How Will Energy Efficiency Benefit My Operation?

During a five-year period, your energy costs will make up more than half of your compression operation and use costs. Minimizing your energy consumption and usage is essential to improving your overall operations. The CPVA’s variable speed technology and iPM motor reduce energy consumption by over 40%.



Experience Better Energy Control With the ES4000 T Touchscreen Controller

  • Streamlined use and operation with touchscreen graphics, interconnected CONnectivity (ICONS), and a customized protective enclosure.
  • Nearly instant responses with a 533MHz processor and 32MB ram.
  • Boosted data collection regarding the operational environment, cooling algorithm, and motor direction phase sequence protection.



Tech Specs

  • Horsepower: 50hp
  • PSI: 188 (Pressure)
  • Outlet CFM Max: 246 (Flow)
  • Max PSI: 188
  • Volts: 460
  • Phase: 3
  • Fuel: Electric
  • Available Options: Base Mounted, Dryer Included, Permanent Magnet Motor, Soft Start Sta



Dimensions & Weight

  • Tank Orientation: None
  • (A) Length: 71.3″
  • (B) Width: 32.7″
  • (C) Height: 61.2″
  • Weight: 1385 lbs
