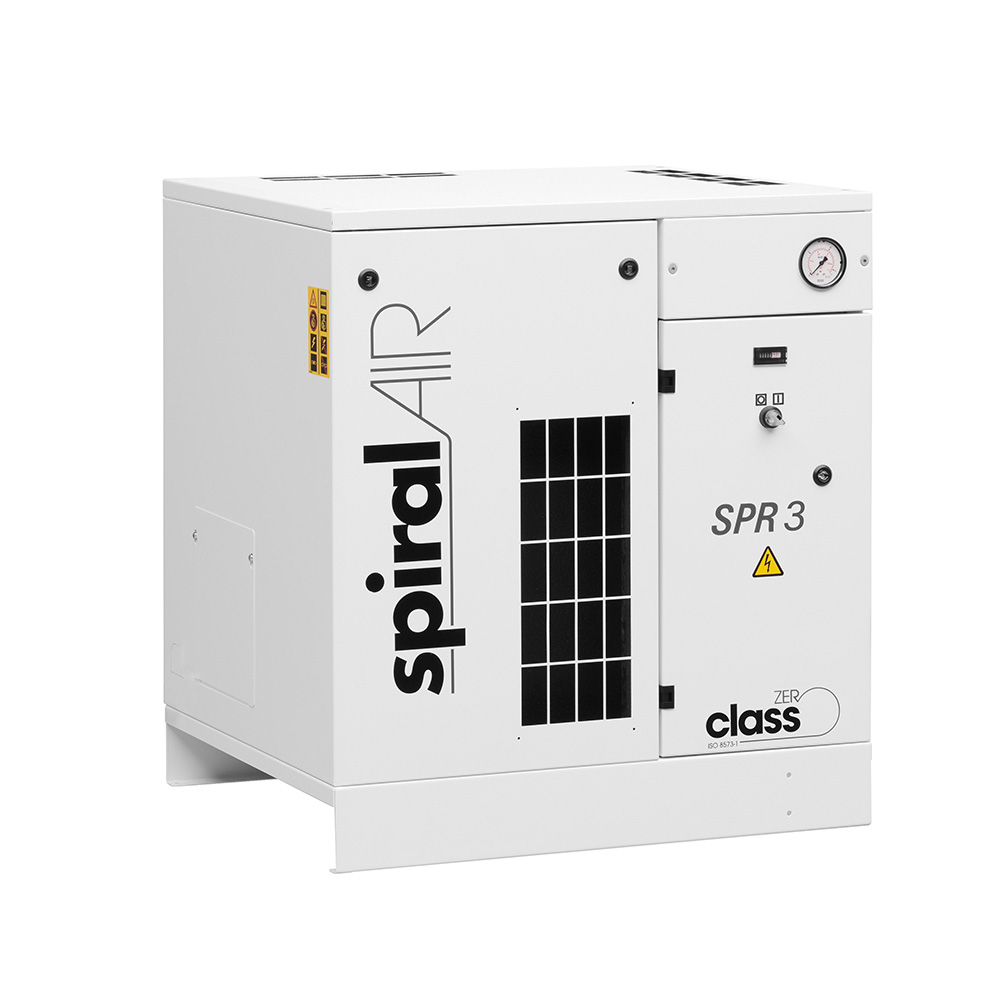

SPR 3
3HP 116PSI Oil-Free Scroll (Super Quiet) Compressor By Chicago Pneumatic (55dBA)
Description
The 3HP 116PSI oil-free scroll compressor by Chicago Pneumatic features Class Zero certification for oil-free operations and an integrated dryer. With noise levels as low as 63 to 65 dB(A), the SPR 3 models provide a point-of-use solution while ensuring user comfort.
Features
- Class zero certified (no oil) and integrated dryer
- Stacked modules for a minimized footprint
- Forklift openings, non-sharp canopy corners, easy access for re-greasing and belt tensioning
- From 63 to 65 dB(A) sound levels
- Organized piping
Tech Specs
- Horsepower: 3hp
- PSI: 116 (Pressure)
- Outlet CFM Max: 8.9 (Flow)
- Max PSI: 116
- Volts: 230
- Phase: 1
- Available Options: Does Not Include Dryer, Base Mounted, 2 Stage
Dimensions & Weight
- Tank Orientation: Base Mounted
- (A) Length: 29.9″
- (B) Width: 27.2″
- (C) Height: 33.1″
- Weight: 276 lbs
