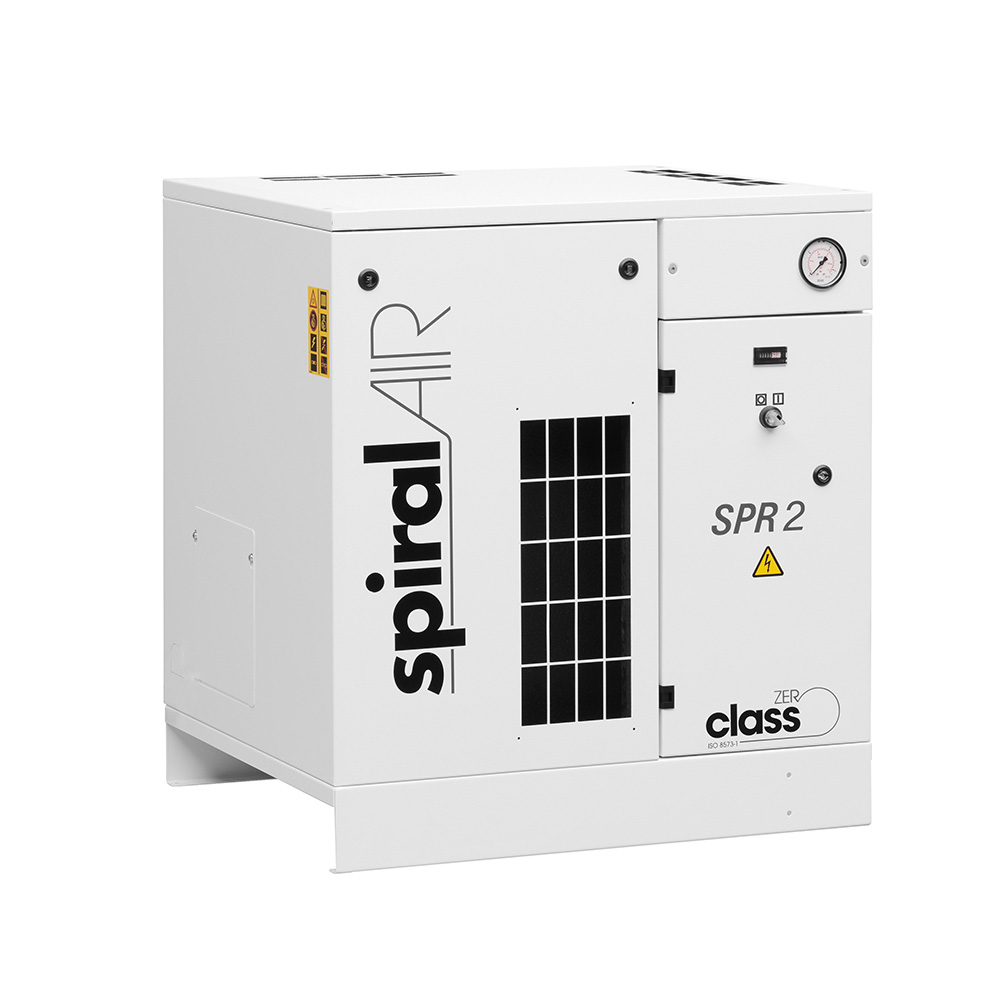

SPR 2

Description

2HP 116PSI oil-free scroll compressor offers numerous benefits, including improved air quality, compactness, and reduced noise level. The features of this compressor include Class Zero certification for oil-free operation and easy maintenance access. With a noise level ranging from 63 to 65 dB(A), the SPR 2 model provides a user-friendly solution for point-of-use applications while ensuring optimum performance and energy savings.

Features

• Class zero certified (no oil) and integrated dryer
• Stacked modules for a minimized footprint
• Forklift openings, non-sharp canopy corners, easy access for re-greasing and belt tensioning
• From 63 to 65 dB(A),
• Organized piping brings low-pressure drop while the algorithm of the graphic controller ensures optimum use of scroll modules for tight pressure band and maximum savings

Tech Specs

• Horsepower: 2hp
• PSI: 116 (Pressure)
• Outlet CFM Max: 6 (Flow)
• Max PSI: 116
• Volts: 230
• Phase: 1
• Available Options: Does Not Include Dryer, Base Mounted, 2 Stage

Dimensions & Weight

• Tank Orientation: Base Mounted
• (A) Length: 29.9″
• (B) Width: 27.2″
• (C) Height: 33.1″
• Weight: 265 lbs
