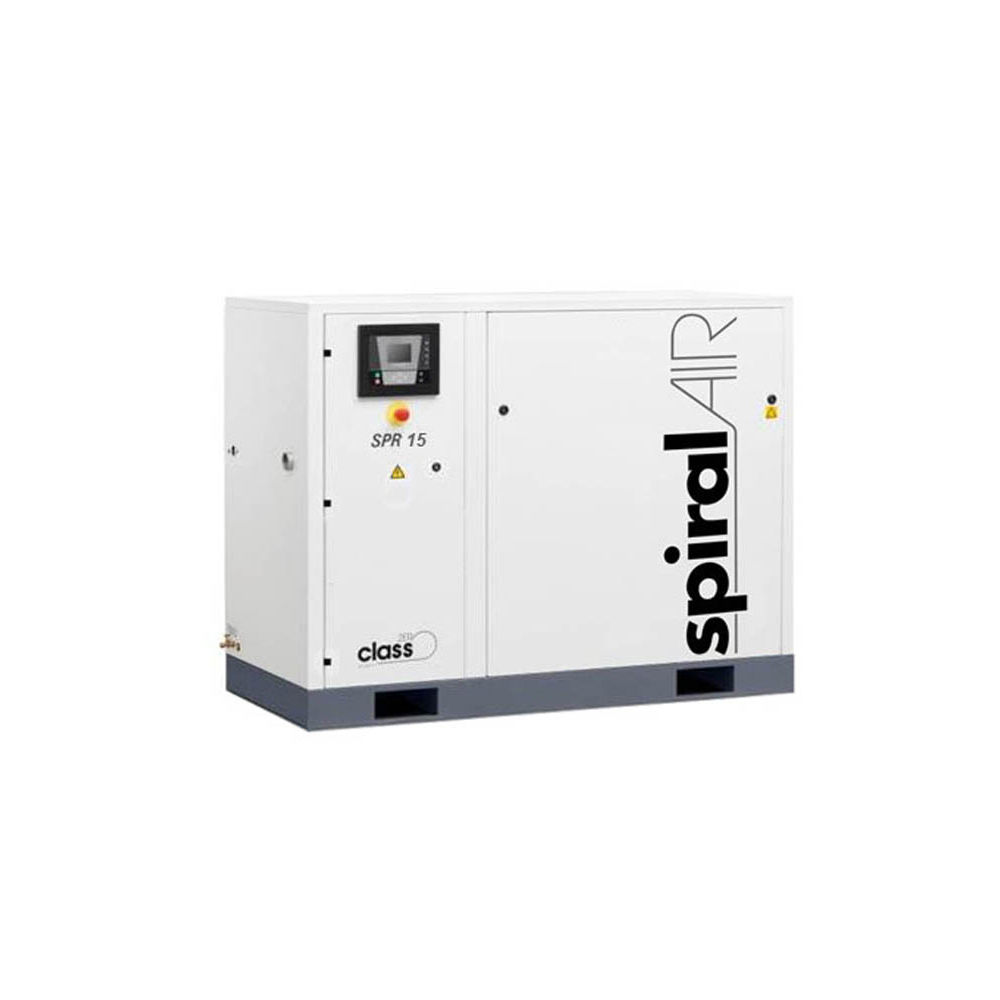

SPR 15

15HP 145PSI Oil-Free Scroll (Super Quiet) Compressor By Chicago Pneumatic (460v, 63dBA)
Chicago Pneumatic logo

SKU: 8153604692 Categories: ,


If you operate a business that needs top air quality and must adhere to ISO 8573-1 (2010) certification for Class Zero status, the 145 460v oil-free scroll compressor will deliver. This scroll compressor not only ensures oil-free air for critical processes but also offers compactness, easy maintenance, quiet noise output, enhanced efficiency, and reduced energy costs.



  • Class zero certified (no oil) and integrated dryer
  • Stacked modules for a minimized footprint
  • Forklift openings, non-sharp canopy corners, easy access for re-greasing and belt tensioning
  • From 63 to 65 dB(A),
  • Organized piping brings low-pressure drop while the algorithm of the graphic controller ensures optimum use of scroll modules for tight pressure band and maximum savings


Tech Specs

  • Horsepower: 15hp
  • PSI: 145 (Pressure)
  • Outlet CFM Max: 31 (Flow)
  • Max PSI: 145
  • Volts: 460
  • Phase: 3
  • Available Options: Does Not Include Dryer, Base Mounted, 2 Stage


Dimensions & Weight

  • (A) Length: 64.1″
  • (B) Width: 29.5″
  • (C) Height: 48.4″
  • Weight: 922 lbs
