RCP-C581VS

Description

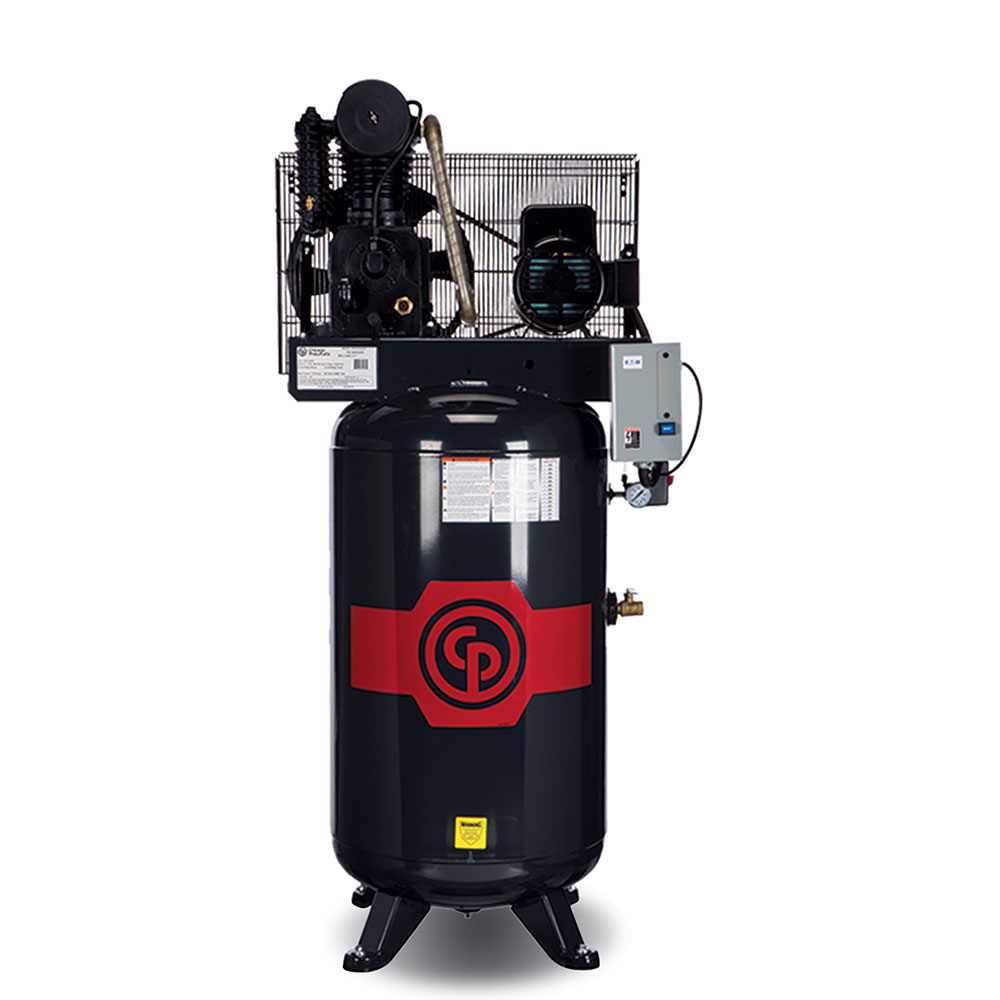

The RCP 230-volt reciprocating air compressor combines exceptional performance and strength with features for ultimate compression. It is designed, built, and manufactured with a solid cast iron cylinder, crankshaft, and valve plates to perform optimally for years. Its aluminum head, coolers, and deep fins dissipate heat with maximum efficiency. With models ranging from simplex to duplex compressors, the RCP series provides reliable power with a variety of options.

Standard Features:

• 66 decibel noise
• 12 Volt electric start and recoil start
• 12 Volt alternator (Honda and Kohler Models)
• Start key / panel
• Oil monitor
• Engine slowdown (pilot valve)
• Fully enclosed belt guard
• EZ pull tank drain
• ASME tank and safety valves
• 3/4″ tank discharge valve

Tech Specs

• Horsepower: 5hp
• PSI: 175 (Pressure)
• Outlet CFM Max: 18 (Flow)
• Max PSI: 175
• Volts: 208, 230
• Phase: 1
• Available Options: Tank Mounted, 2 Stage

Dimension & Weight

• Tank Size: 80 Gallons
• Tank Orientation: Vertical
• (A) Length: 39″
• (B) Width: 24″
• (C) Height: 80″
• Weight: 527 lbs
