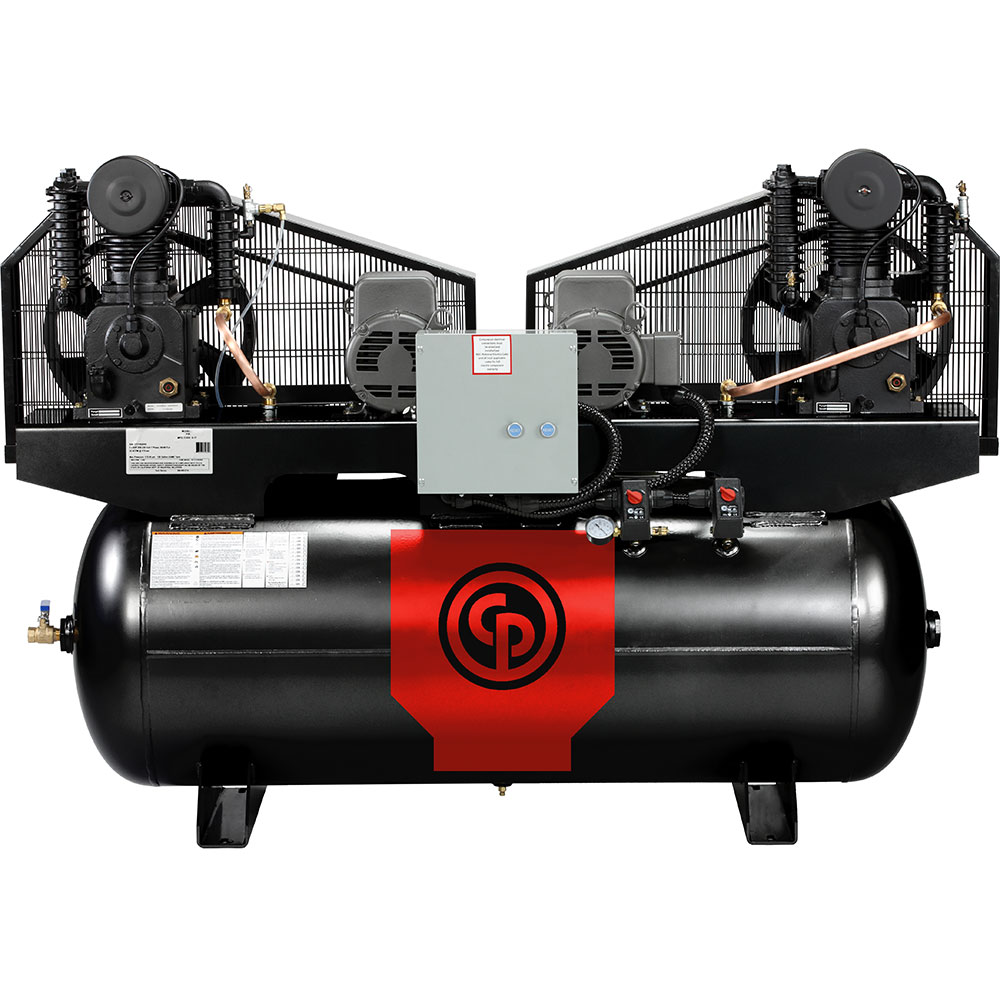

10HP 175PSI 120GAL Horizontal Tank Mounted Cast Iron Two Stage Reciprocating Duplex Compressor By Chicago Pneumatic (208-230v)
Chicago Pneumatic logo


Offered in simplex and duplex models ranging from 10 to 20 HP, The RCP 175PSI tank-mounted reciprocating duplex compressor offers incredible strength and maximum performance with features such as solid cast iron components, deep fin coolers to dissipate heat properly and balanced pistons and crankshaft for a seamless operation. The standard features include start-stop pressure switch control, certified tanks with safety valves, fully enclosed belt guard.

RCP Iron Series Standard Features:


  • Start-Stop Pressure Switch Control
  • CRN and ASME- certified tank
  • Fully Enclosed Belt Guard
  • Discharge Valve
  • Magnetic Starter and Alternator


Premium Model Features


  • Low Oil Level Switch
  • Automatic Tank Drain
  • Belt Guard Aftercooler


Tech Specs


  • Horsepower: 10hp
  • PSI: 175 (Pressure)
  • Outlet CFM Max: 36 (Flow)
  • Max PSI: 175
  • Volts: 208, 230
  • Phase: 1
  • Available Options: Tank Mounted, 2 Stage, Duplex


Dimension & Weight


  • Tank Size: 120 Gallons
  • Tank Orientation: Horizontal
  • (A) Length: 77″
  • (B) Width: 27″
  • (C) Height: 56″
  • Weight: 1023 lbs
