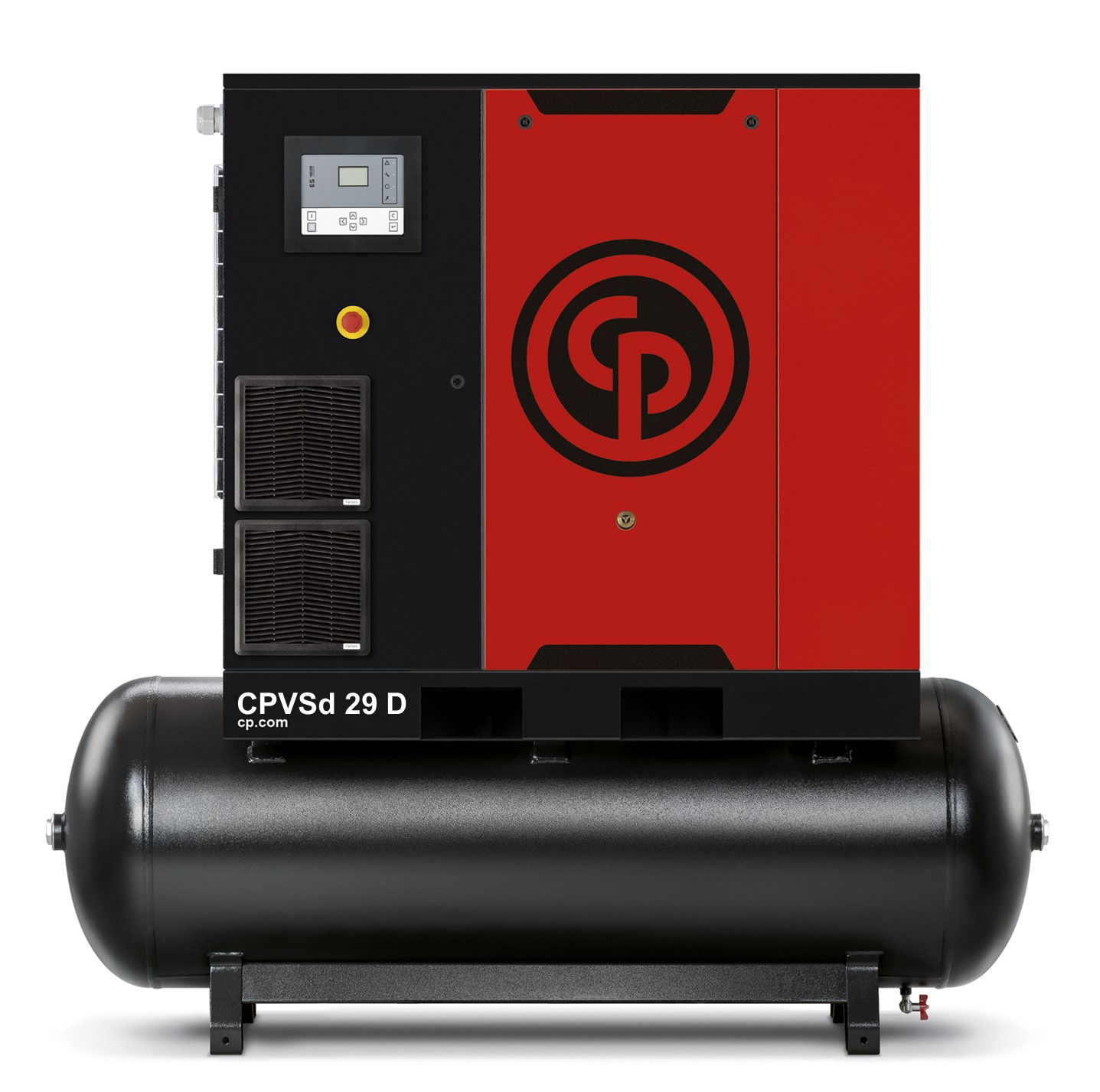

CPVSd 29D TM

Description

The CPVSd 29D TM’s capacity adjustment capabilities result in lower operating expenses. Its advanced controller ensures precise air delivery while maintaining system pressure, maximizing efficiency. The variable speed technology and direct drive transmission contribute to up to 30% energy savings, making it a reliable and economical solution for compressed air requirements.

Standard Features

• Low sound enclosure
• Direct drive transmission
• 73-182 psig pressure range
• 20-100% turndown capacity
• ES4000 Advanced graphic controller
• 460V standard
• 230V available for tank-mounted models
• IP55 TEFC High-Frequency Motors designed for variable speed use
• Heavy duty, 2-stage pre-filtration
• Shipped with synthetic oil
• Easily accessible integrated inverter drives
• Stable pressure due to Variable Speed Drive
• ECOntrol 6i capable
• ICONS capable

Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.

Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.

Features

• Graphic Display
• Automatic Restart After Voltage Failure
• I/O Expandable
• Graphic Service Plan Indicator
• Remote Pressure Sensor Possible
• Real-Time Trending
• Remote Visualization
• Master Control Capability
• Programmable daily and weekly schedule

Tech Specs

• Horsepower: 30hp
• PSI: 182 (Pressure)
• Outlet CFM Max: 139 (Flow)
• Max PSI: 182
• Volts: 460
• Phase: 3
• Fuel: Electric
• Available Options: Tank Mounted, Dryer Included

Dimensions & Weight

• Tank Size: 132 Gallons
• Tank Orientation: Horizontal
• (A) Length: 76.4″
• (B) Width: 32.9″
• (C) Height: 72.2″
• Weight: 1323 lbs
