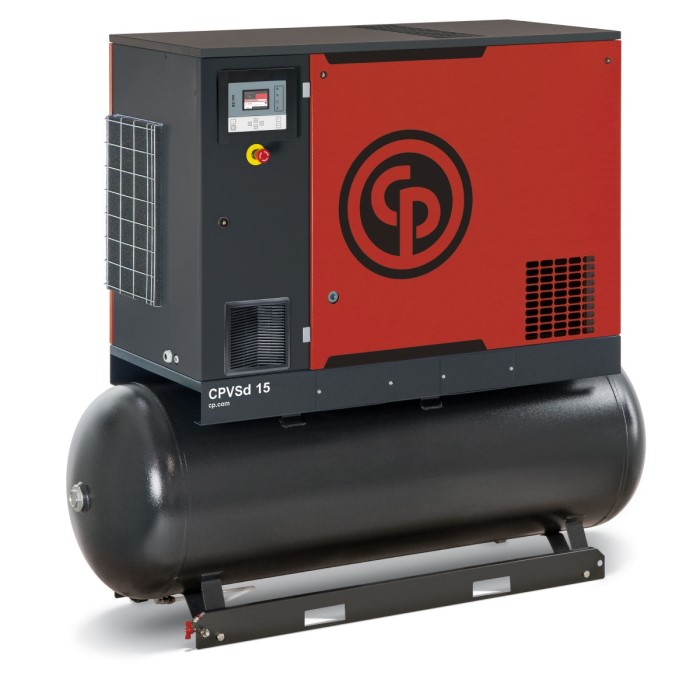

CPVSd 15 D TM

Description

The CPVSd 15 D TM offers cost savings by adjusting capacity to meet application demand. With a high-frequency motor and integrated inverter drives, it delivers stable pressure and reduces energy consumption by up to 30%. The CPVSd, managed by the ES4000 Advanced Controller, ensures optimal efficiency with features like intelligent shutdown, real-time monitoring, and programmable scheduling.

Standard Features

• Low sound enclosure
• Direct drive transmission
• 73-182 psig pressure range
• 20-100% turndown capacity
• ES4000 Advanced graphic controller
• 460V standard
• 230V available for tank-mounted models
• IP55 TEFC High-Frequency Motors designed for variable speed use
• Heavy duty, 2-stage pre-filtration
• Shipped with synthetic oil
• Easily accessible integrated inverter drives
• Stable pressure due to Variable Speed Drive
• ECOntrol 6i capable
• ICONS capable

Reduce Your Energy Loss Significantly

Energy costs typically consume over half of total operational spending over five years. The CPVSd can reduce energy bills by 30%, making production more cost-effective.

Outstanding Savings Through Smart Features

The CPVSd is controlled by the innovative ES4000 Advanced. This intelligent management and control feature can be programmed with customized compressor shutdown times, ensuring you only use the compression you need and reduce loss. Operators choose the ES4000 Advanced to save hundreds in annual operational spending.

Features

• Graphic Display
• Automatic Restart After Voltage Failure
• I/O Expandable
• Graphic Service Plan Indicator
• Remote Pressure Sensor Possible
• Real-Time Trending
• Remote Visualization
• Master Control Capability
• Programmable daily and weekly schedule

Tech Specs

• Horsepower: 15hp
• PSI: 182 (Pressure)
• Outlet CFM Max: 64 (Flow)
• Max PSI: 182
• Volts: 460
• Phase: 3
• Fuel: Electric
• Available Options: Tank Mounted, Dryer Included

Dimensions & Weight

• Tank Size: 120 Gallons
• Tank Orientation: Horizontal
• (A) Length: 77″
• (B) Width: 26″
• (C) Height: 67″
• Weight: 1025 lbs
