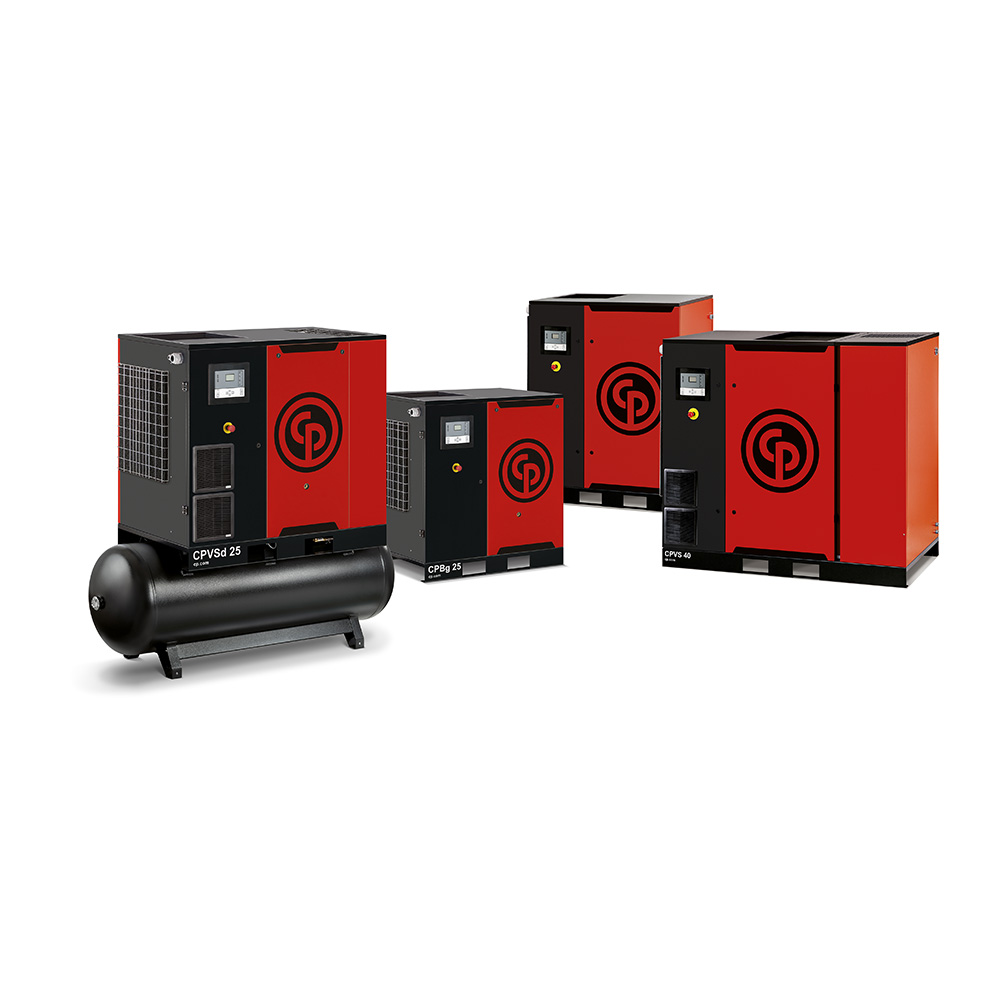

CPBg 20 BM

Description

Prepare to enjoy the highest standards of excellence with Chicago Pneumatic. The CPBg 20 can withstand the most challenging conditions while keeping its noise level to a nearly unnoticeable minimum. With a performance-driven gearbox, the CPBg 20 is built with a one-of-a-kind design and highly customized settings to fit the needs of any industry.

Quiet Noise Emission

The CPBg series’ gearbox and insulation allow it to operate optimally while making very little noise.

Minimal Upkeep

No more frequent maintenance visits, repairs, or replacement work. The CPBg’s innovative oil separating reduces upkeep significantly.

Intelligent Monitoring

The advanced ES4000 monitoring, and control capability is designed to help businesses and operations to minimize their energy costs. It gives the user complete control over energy usage and provides a smart operation shutdown, which reduces energy waste.

Energy Conservation

The CPBg saves more energy while enhancing compressed air generation processes.

Air Quality Packages

Some CPBg models can be equipped with a dryer, water separator drain, and post filter for maximum use.

Standard Features

• Low sound enclosure and pre-filtration panel with foam
• 100, 125, 150 and 175 psig available
• Rapid, single-panel maintenance
• Wye-delta, reduced voltage start
• ES4000 microprocessor control
• Tri-voltage 208-230-460 motor
• Independent oil and air aftercoolers
• Temperature protection on drive side motor bearings
• Improved long life inlet valve
• Shipped with Rotair 2000 hour oil
• Tank and base mount options
• 10 L / 2.64 gal oil capacity
• ASME and cUL approved

Other Features

• Automatic Restart After Voltage Failure
• I/O Expandable
• Service Warnings
• Remote Pressure Sensor Possible
• Remote Monitoring

Tech Specs

• Horsepower: 20hp
• PSI: 125 (Pressure)
• Outlet CFM Max: 88 (Flow)
• Max PSI: 125
• Volts: 208, 230, 460
• Phase: 3
• Fuel: Electric
• Available Options: Does Not Include Dryer, Base Mounted

Dimensions & Weight

• Tank Orientation: None
• (A) Length: 47.2″
• (B) Width: 32.9″
• (C) Height: 48″
• Weight: 904 lbs.
